Description

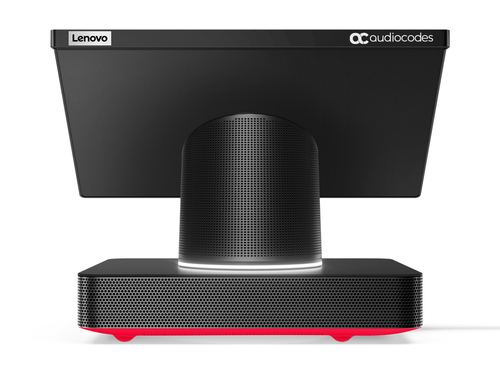

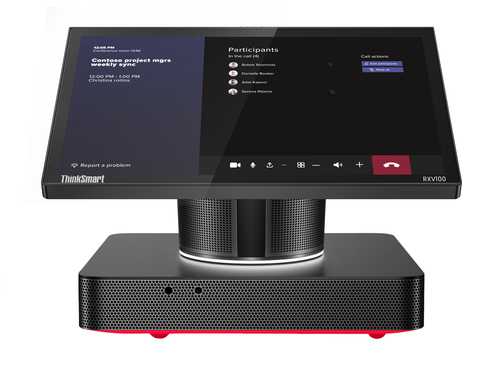

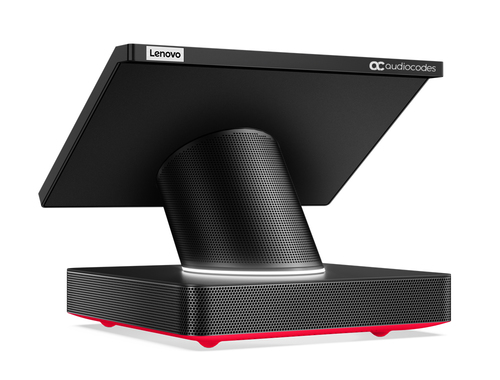

AudioCodes RXV100 Hub with Audio bundled with RXVCam50M. Compatible with Microsoft Teams or Zoom, Multimedia congress terminal, CMOS, 10x, Windows 10 IoT Enterprise SAC, Black
On-site meetings often involve a greater number of participants. As such, effective video and audio collaboration in larger rooms requires the careful consideration of factors such as voice pickup range, visual coverage, and unified communications integration to ensure truly productive meetings. AudioCodes’ RXV100 bundles featuring the RXVCam50M for video bring meetings to life and deliver the optimal collaboration experience for everyone.
Specifications
| Brand | AUDIOCODES |
|---|---|
| Manufacturer part no. | RXV100-B20 |
| Our part no. | CL11219 |
| EAN | 0196118571096 |
| Category | Networking › Other (0416) |
| Weight | 5.7 kg |
| Performance | |
| Number of persons | 12 person(s) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Product colour | Black |
| Product type | Multimedia congress terminal |
| PTZ control | Yes |
| Video | |
| Supported video modes | 1080p, 480p, 720p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Aspect ratio | 16:10 |
| Video formats supported | H.264, H.265, MJPG, YUY2 |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 4 |
| RMS rated power | 6 W |
| Memory | |
| Internal memory | 8192 MB |
| Internal memory type | DDR4 |
| Storage media type | SSD |
| Total storage capacity | 128 GB |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Camera | |
| Camera type | Single camera |
| Zoom capability | Yes |
| Digital zoom | 10x |
| Effective sensor resolution | 8.28 MP |
| Sensor type | CMOS |
| Image sensor size | 1/2.5" |
| Horizontal field of view | 120° |
| Vertical field of view | 85° |
| Diagonal field of view | 126° |
| Minimum illumination | 0.1 lx |
| Display | |
| Built-in display | Yes |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display brightness | 320 cd/m² |
| Anti-glare screen | Yes |
| Microphone | |
| Microphone direction type | Omnidirectional |
| Number of microphones | 4 |
| Features | |
| Telepresence | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Computer system | |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8365U |
| Operating system installed | Windows 10 IoT Enterprise SAC |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Other operating systems supported | Linux |
| System requirements | |
| Minimum system requirements | Intel Core 2 Duo |
| Minimum processor speed | 2.4 GHz |
| Minimum RAM | 2048 MB |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Power | |
| Current | 1 A |
| Operating voltage (microphone) | 5 V |
| Weight & dimensions | |
| Camera dimensions (WxDxH) | 220 x 93.75 x 56.5 mm |
| Width | 240 mm |
| Depth | 200 mm |
| Height | 185.3 mm |
| Weight | 2.47 kg |
| Packaging content | |
| Cables included | USB |
| Remote control included | Yes |
| Manual | Yes |
