Description
Vertiv Geist VP4G30AS, Monitored, 0U, Three-phase, Vertical, Black, LCD

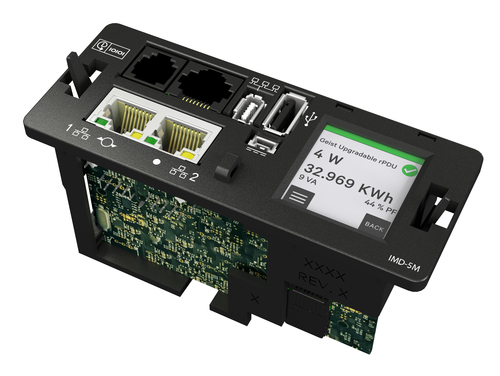

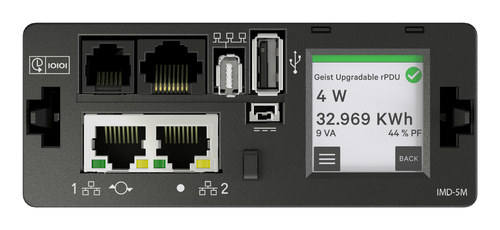

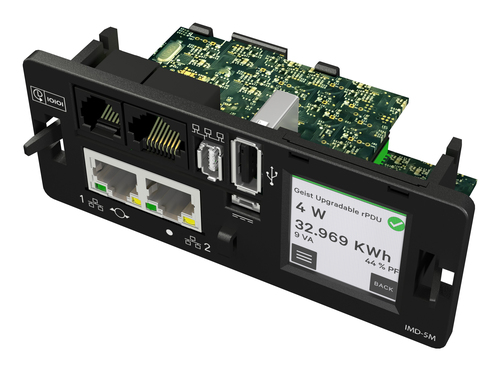

The Vertiv Geist Monitored RPDU VP4G30AS is a 32A, 230/400V WYE, 0U, vertical rack power distribution unit with input power monitoring. It has (30) IEC C13 and (12) IEC C19 outlets and a 3P+N+E (IP44) plug providing 22kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are CE Marked, comply with IEC 60950-1 (CB Certificate Available), RoHS certified, and are individually tested for functionality and reliability.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | VP4G30AS |
| Our part no. | CL20259 |
| EAN | 4061471343580 |
| Category | Power & UPS › PDUs |
| Weight | 32.7 kg |
| Design | |
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
| On/off switch | No |
| Ports & interfaces | |
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
| Features | |
| Reset button | Yes |
| Cable length | 3.05 m |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
| Power | |
| Nominal input voltage | 230 - 400 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 32 V |
| Load capacity | 230 VA |
| Power protection features | Over current |
| Maximum power | 22000 W |
| Certificates | |
| Certification | CE Marked UKCA Marked Complies with IEC 62368-1 (DOC Available) Complies with EN 55032 and EN 55035 RoHS Compliant Cم Mark |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 45 °C |
| Weight & dimensions | |
| Width | 51 mm |
| Depth | 58 mm |
| Height | 1829 mm |
| Packaging data | |
| Package weight | 7.71 kg |
