Description
NETGEAR MS305E, Unmanaged, 2.5G Ethernet (100/1000/2500), Full duplex, Wall mountable

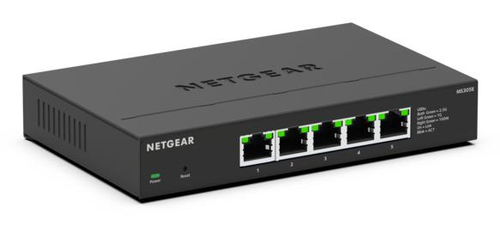

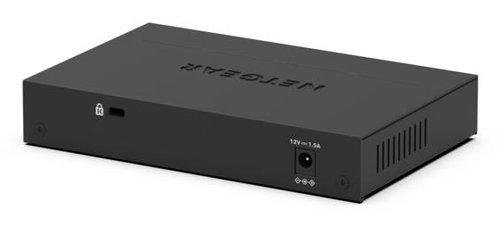

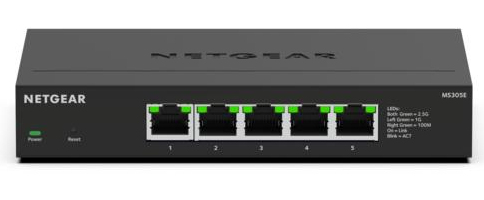

NETGEAR 5-port 2.5G Multi-Gigabit Ethernet Plus Switch
MULTI-GIGABIT ETHERNET 5 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each NON-BLOCKING SWITCHING 25Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
AUTO-NEGOTIATION Automatic connection at the highest common speed between the switch and an end device
FANLESS DESIGN Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | MS305E-100EUS |
| Our part no. | CL32541 |
| EAN | 0606449170634 |
| Category | Networking › Unmanaged Switches |
| Weight | 0.2 kg |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Cable length detection | Yes |
| Data transmission | |
| Switching capacity | 40 Gbit/s |
| Forwarding rate | 3.72 Mpps |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 4.9 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
| Packet buffer memory | 1 MB |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
| Number of fans | 0 fan(s) |
| Performance | |
| Noise level | 0 dB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 4273003 h |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1 A |
| Input voltage | 12 V |
| Power consumption (max) | 5.6 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Warranty period | 5 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 450 g |
| Certificates | |
| Compliance certificates | CCC, Low Voltage Directive (LVD) |
