Description

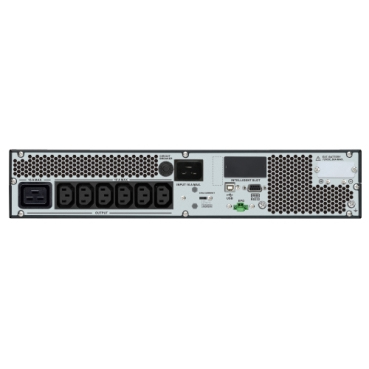

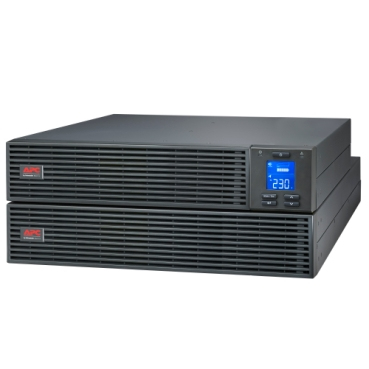

APC SRV3KRILRK-E, 3 kVA, 2700 W, Sine, 105 V, 300 V, 40 - 70 Hz
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SRV3KRILRK-E |
| Our part no. | CL38763 |
| EAN | 0731304450986 |
| Category | Power & UPS › UPS |
| Weight | 72.5 kg |
| Features | |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 105 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 230 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 600 J |
| Heat dissipation | 910 BTU/h |
| Crest factor | 3:1 |
| Noise level | 53 dB |
| Ports & interfaces | |
| AC outlet types | IEC 60320 |
| Power plug | C20 coupler |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 72 V |
| Battery recharge time | 5.5 h |
| Design | |
| Rack capacity | 4U |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Packaging content | |
| Management card included | No |
| Weight & dimensions | |
| Width | 437 mm |
| Depth | 632 mm |
| Height | 172 mm |
| Weight | 52.2 kg |
| Packaging data | |
| Package width | 700 mm |
| Package depth | 600 mm |
| Package height | 480 mm |
| Package weight | 66.7 kg |
| Logistics data | |
| Warranty period | 2 year(s) |
