Description

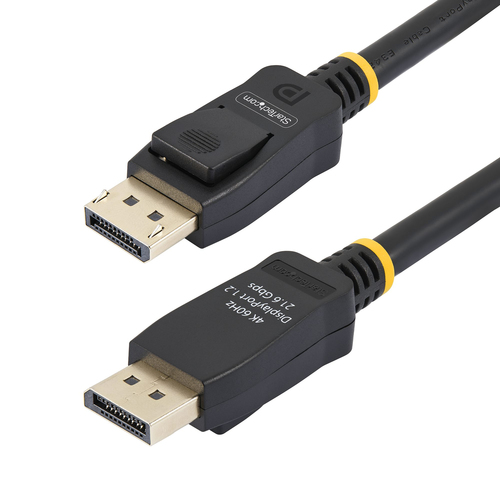

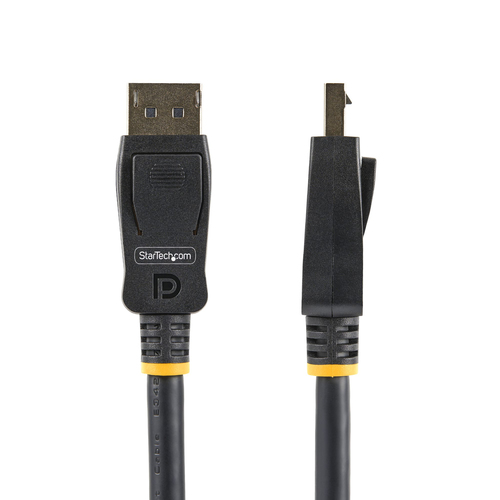

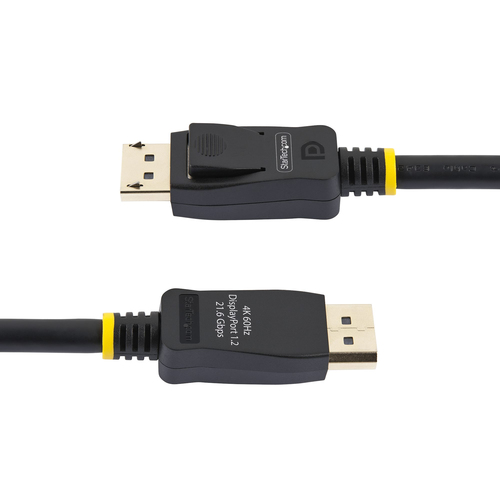

StarTech.com 2m (6.6ft) VESA Certified DisplayPort Cable - 10 Pack - DisplayPort 1.2 Cord with Latches, 4K 60Hz UHD, DP to DP Cable for Monitor, Latching DP Connectors, 2 m, DisplayPort, DisplayPort, Male, Male, 3840 x 2160 pixels

Set up multiple 4K UHD connections using this DisplayPort Cable 10 Pack

Faciliate multi-monitor setups using this DisplayPort 1.2 Cable 10-Pack. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 4K workstations, docks, and high performance GPUs. Connect a 4K 60Hz UHD DisplayPort monitor to a host computer or MST hub.

Seamless Compatibility

For seamless operation between DisplayPort-enabled devices, the DisplayPort 1.2 Cable is VESA Certified for guaranteed DP 1.2 and backward compatibility with DP 1.1.

Durable Design

This DisplayPort cable features a flexible TPE outer jacket and can be routed around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching gold-plated DP connectors attach securely to prevent accidental disconnection.

Supported DisplayPort 1.2 Features:

The Certified DisplayPort Cable supports the following DP 1.2 features:

• Resolutions up to 4K 60Hz, using a compatible DP source and display • Supports high refresh rates including 1080p 120Hz and 1440p 75Hz • High-Bandwidth Digital Content Protection (HDCP) for a secure connection between source and display • Multi-Stream Transport (MST) for daisy-chaining multiple monitors • 8 Uncompressed Digital Audio Channels • Backward compatible with DP 1.1

This DP 1.2 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.

Specifications

BrandSTARTECH
Manufacturer part no.DISPL2M10PK
Our part no.CL51312
EAN0065030910071
CategoryCables & Adapters › VGA & Video Adapters
Weight1.3 kg
Features
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingNickel
Maximum resolution3840 x 2160 pixels
Maximum refresh rate120 Hz
HDCPYes
Cable length2 m
Connector 1DisplayPort
Connector 2DisplayPort
Connector 1 genderMale
Connector 2 genderMale
Latching connectorsYes
Product colourBlack
Cable ratingCMG (CM)
Cable shieldingAluminum mylar foil
Jacket materialThermoplastic elastomer (TPE)
AWG wire size28
Data transfer rate21.6 Gbit/s
Multi-Stream Transport (MST)Yes
Number of conductors19
Cable typeRound cable
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 85%
Certificates
Compliance certificatesCE, RoHS
Weight & dimensions
Cable diameter7.3 mm
Weight134 g
Packaging data
Package width350 mm
Package depth460 mm
Package height100 mm
Package weight1.4 kg
Packaging content
Quantity per pack10 pc(s)
Logistics data
Master (outer) case width320 mm
Master (outer) case length500 mm
Master (outer) case height210 mm
Products per master (outer) case5 pc(s)
