Description

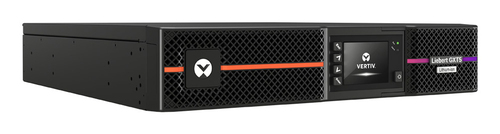

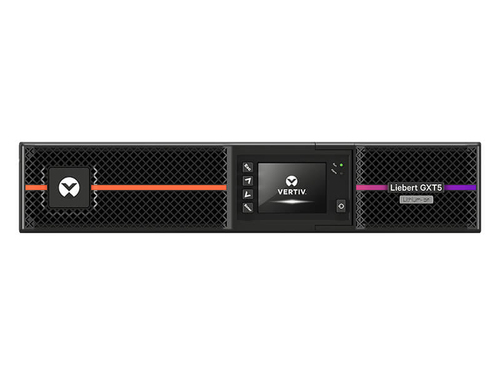

Vertiv Liebert GXT5 Lithium-Ion Online UPS 1500 VA/1500 W 230 V Rack/Tower, Double-conversion (Online), 3 kVA, 2700 W, Pure sine, 115 V, 288 V
The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium LFP batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load (varies by model)) to protect critical equipment during an unexpected power loss. They offer better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries. Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | GXT5LI-3000IRT2UXLN |
| Our part no. | CL58997 |
| EAN | 4061471435346 |
| Category | Power & UPS › UPS |
| Weight | 28.9 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 115 V |
| Input operation voltage (max) | 288 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 95% |
| Efficiency (ECO mode) | 98% |
| Output power factor | 0.9 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Noise level | 48 dB |
| Surge protection | Yes |
| Power protection features | Over voltage, Under voltage |
| Ports & interfaces | |

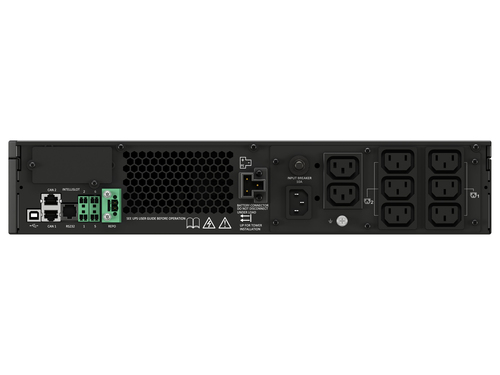

| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 7 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Serial ports quantity | 1 |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Typical backup time at full load | 6.5 min |
| Typical backup time at half load | 14.5 min |
| Battery recharge time | 2 h |
| Hot-swap battery | Yes |
| Battery weight | 5.9 kg |
| Design | |
| Form factor | Tower |
| Rack capacity | 2U |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | REACH, RoHS, WEEE |
| Weight & dimensions | |
| Width | 430 mm |
| Depth | 546 mm |
| Height | 85 mm |
| Weight | 21 kg |
| Packaging data | |
| Package width | 570 mm |
| Package depth | 717 mm |
| Package height | 242 mm |
| Package weight | 27 kg |
