Description

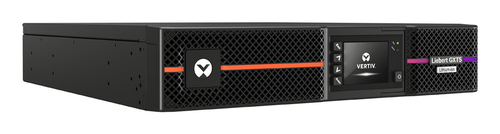

Vertiv Liebert GXT5 Lithium-Ion Online UPS 1500 VA/1500 W 230 V Rack/Tower, Double-conversion (Online), 1.5 kVA, 1500 W, Pure sine, 115 V, 280 V

The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium LFP batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load (varies by model)) to protect critical equipment during an unexpected power loss. They offer better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries. Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment.

Specifications

BrandVERTIV
Manufacturer part no.GXT5-1500IRT2UXLN
Our part no.CL58999
EAN4061471435292
CategoryPower & UPS › UPS
Weight7 kg
Features
UPS topologyDouble-conversion (Online)
Output power capacity1.5 kVA
Output power1500 W
WaveformPure sine
Input operation voltage (min)115 V
Input operation voltage (max)280 V
Input frequency40 - 70 Hz
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Efficiency93%
Power factor0.99
ECO modeYes
Noise level46 dB

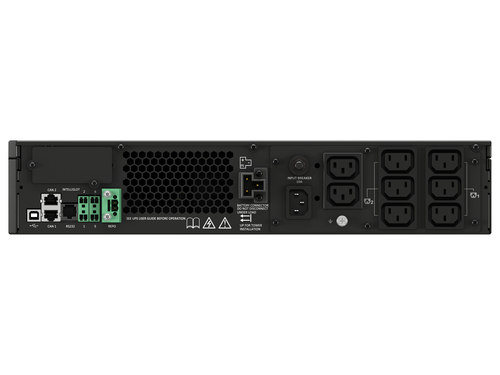

Ports & interfaces
AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
Modem (RJ-11) ports1
Ethernet LAN (RJ-45) ports2
Battery
Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Battery voltage12 V
Number of batteries included3 pc(s)
Typical backup time at full load13 min
Typical backup time at half load27 min
Battery recharge time4 h
Design
Form factorTower
Rack capacity2U
Product colourBlack
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Certificates
Compliance certificatesREACH, RoHS
CertificationUL-1778 (Fifth Edition), C-UL listed, IEC 62040-1: 2008 (First Edition) + Am 1:2013, EN 62040-1:2008+A1:2013, CISPR22 Class A (RFI)/ FCC Part 15 (Class A), ISTA Procedure 1A, ANSI C62.41 Category B
Packaging content
Batteries includedYes
Cables includedUSB cable
ManualYes
Quick installation guideYes
Sustainability
Sustainability certificatesENERGY STAR
Weight & dimensions
Width430 mm
Depth476 mm
Height85 mm
Weight17.5 kg
Packaging data
Package width570 mm
Package depth597 mm
Package height242 mm
Package weight24 kg
Logistics data
Country of originChina
