Description

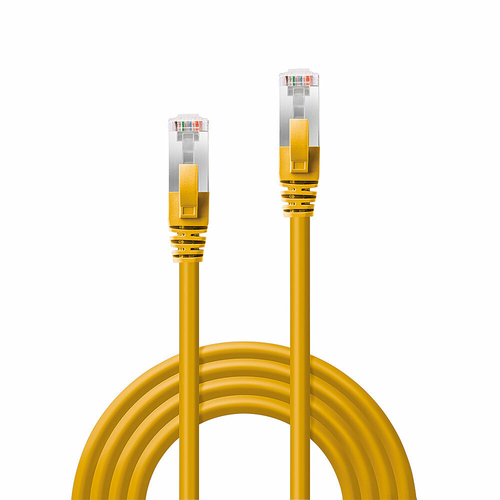

Lindy 47861, 0.5 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Yellow

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions. Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m. Available colours: Black, Blue, Grey, Red, White, Yellow, Green

Specifications

BrandLINDY
Manufacturer part no.47861
Our part no.CL68440
CategoryCables & Adapters › Network Cables
Weight0 kg
Features
Product colourYellow
Cable length0.5 m
Cable standardCat6a
Cable shieldingS/FTP (S-STP)
Connector 1RJ-45
Connector 2RJ-45
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingNickel/Gold
Connector shieldingYes
Connector shield materialAluminium
Jacket materialLow smoke zero halogen (LSZH)
Cable shapeRound
Conductor materialCopper
Connector housing materialPolycarbonate (PC)
AWG wire size27
Frequency500 MHz
Bend radius (min)7.2 cm
Operational conditions
Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-20 - 75 °C
Sustainability
Doesn't containHalogen
Certificates
Compliance certificatesREACH, RoHS
CertificationRoHS, REACH
Weight & dimensions
Width11.6 mm
Depth21.5 mm
Height8.3 mm
Outer diameter6 mm
Connector 1 dimensions (WxDxH)11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH)11.6 x 21.5 x 8.3 mm
Packaging data
Package typePolybag
Technical details
Sustainability complianceYes
