Description

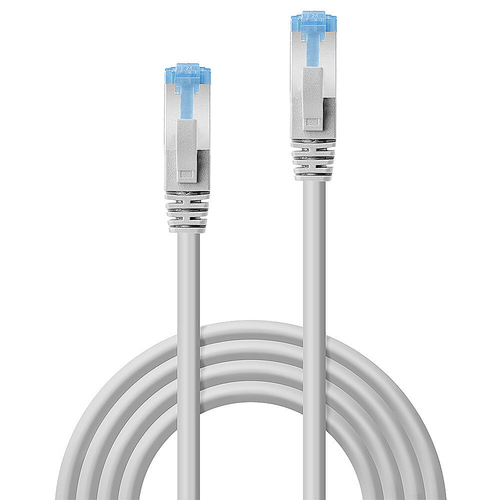

Lindy 10m Cat.6A U/UTP LSZH Cable, Grey, 10 m, Cat6a, U/UTP (UTP), RJ-45, RJ-45, Grey

Cat.6A U/UTP LSZH network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T. Cat.6A cable for operating frequencies up to 500MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m

Specifications

BrandLINDY
Manufacturer part no.47618
Our part no.CL68465
CategoryCables & Adapters › Network Cables
Weight0 kg
Features
Product colourGrey
Cable length10 m
Cable standardCat6a
Cable shieldingU/UTP (UTP)
Connector 1RJ-45
Connector 2RJ-45
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
Connector shieldingYes
Connector shield materialAluminium
Jacket materialLow smoke zero halogen (LSZH)
Cable shapeRound
Conductor materialCopper
Connector housing materialPolycarbonate (PC)
Cabling technology10GBase-T
AWG wire size26
Frequency500 MHz
Bend radius (min)6.9 cm
Operational conditions
Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-20 - 75 °C
Sustainability
Doesn't containHalogen
Certificates
Compliance certificatesREACH, RoHS, UL
CertificationRoHS, REACH, UL, California Proposition 65
Weight & dimensions
Width11.6 mm
Depth22.8 mm
Height8.3 mm
Outer diameter5.8 mm
Connector 1 dimensions (WxDxH)11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH)11.6 x 22.8 x 8.3 mm
Packaging content
Quantity per pack1 pc(s)
ManualYes
Packaging data
Package typePolybag
Logistics data
Warranty period10 year(s)
Technical details
Sustainability complianceYes
