Description

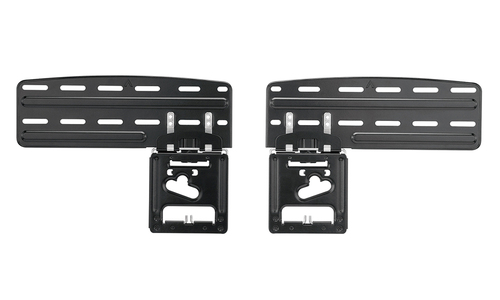

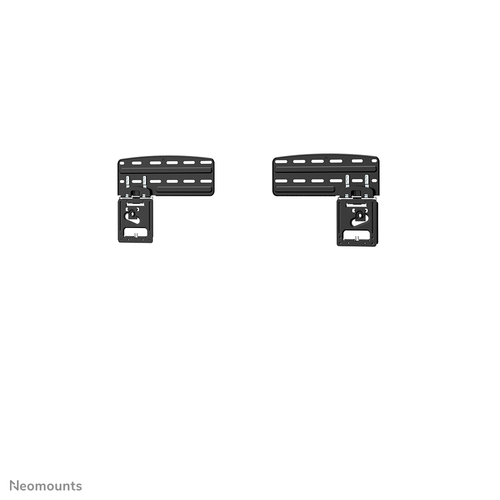

Neomounts WL30-265BL1 TV mount wall 43-85" Samsung screens - ultra-flat, 109.2 cm (43"), 2.16 m (85"), 150 x 100 mm, 1200 x 800 mm, Steel, Black
The Neomounts WL30-265BL1 offers the ideal ultra-slim solution for various Samsung screens* up to 85", including the Crystal UHD professional signage displays. This mount allows your screen to be installed incredibly close to the wall, leaving just 3-7,5 mm space depending on the TV model. Your TV will look like a painting on the wall. Level adjustment is available for the perfect installation.

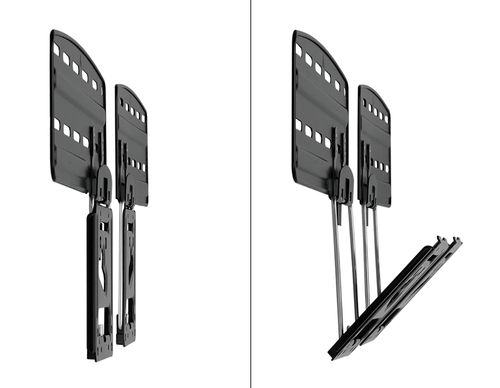

The WL30-265BL1 is suitable for screens that meet VESA hole pattern 150x100 to 1200x800 mm and supports a maximum weight of 60kg. Strong magnetic contacts ensure solid placement of the screen while the convenient kickstand option allows easy access to cables and connectors behind the screen. Anti-skid pads ensure safe and scratch-free installation of the screen to the mount.
* The Neomounts WL30-265BL1 wall mount is optimised for the following Samsung models:
2025 Samsung models - 43-85": QN1EF, QN70F,QN85F, QN84F, QN90F
2024 Samsung models -\t43-85": Crystal UHD Signage Displays QMC, QBC, QHC, QN95D/C, QN90D/C, QN85D/C
2023 Samsung models -\t43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000 -\t50-85": The Frame (2021-2023)
2022 Samsung models -\t43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B
2021 Samsung models -\t43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)
NOT compatible with Samsung models -\t77": OLED S90C, S95C, QLED Q80A, Q80C, Neo QLED QN95D, QN95C -\tCrystal UHD CU7000
For detailed compatibility, please refer to the online manual.
Specifications
| Brand | NEOMOUNTS |
|---|---|
| Manufacturer part no. | WL30-265BL1 |
| Our part no. | CL75297 |
| EAN | 8717371443900 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 1.6 kg |
| Mounting | |
| Maximum weight capacity | 60 kg |
| Minimum screen size | 109.2 cm (43") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 60 kg |
| Maximum screen size | 2.16 m (85") |
| Minimum VESA mount | 150 x 100 mm |
| Maximum VESA mount | 1200 x 800 mm |
| Panel mounting interface | 1000 x 400,1000 x 600,1000 x 800,1000 x 700,1200 x 600,1200 x 800,1200 x 900,1400 x 800,1500 x 900,1500 x 600,150 x 200,1600 x 600,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 900,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,460 x 640,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,700 x 400,800 x 800,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600,900 x 600 |
| Mounting type | Wall |
| Ergonomics | |
| Cable management | No |
| Type | Fixed |
| Distance to the wall (max) | 7.5 mm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Country of origin | China |
| Warranty period | 5 year(s) |
| Lockable | Not lockable |
| Features | |
| Compatible products | - 43-85": Crystal UHD Signage Displays QMC, QBC, QHC 2023 Samsung - 43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000 - 50-85": The Frame (2021-2023) 2022 Samsung - 43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B 2021 Samsung - 43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000) |
| Weight & dimensions | |
| Width | 640 mm |
| Depth | 7.5 mm |
| Depth (max) | 7.5 mm |
| Height | 236 mm |
| Weight | 1.2 kg |
| Packaging data | |
| Package width | 162 mm |
| Package depth | 63 mm |
| Package height | 363 mm |
| Package weight | 1.6 kg |
| Logistics data | |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 380 mm |
| Master (outer) case gross weight | 16.5 kg |
| Master (outer) case net weight | 12 kg |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 243 pc(s) |
