ASUS 90AR00M2-M000M0, PC barebone, DDR5-SDRAM, M.2, Serial ATA, Ethernet LAN, 65 W

ASUS NUC 14 Essential (Barebone) ASUS NUC 14 Essential is the next-generation mini PC that takes performance, portability, and versatility to greater heights. Powered by the latest energy-efficient Intel® Core™ N-series processors and equipped with diverse connectivity options, this sleek, compact device is built to boost productivity and makes light work of diverse applications.

Faster Performance Exceptional responsiveness makes the NUC 14 Essential ideal for image editing and speedier web navigation​ Reduced Power Consumption The energy-efficient Intel® Core™ N-Series processor that powers NUC 14 Essential delivers outstanding performance while consuming less power Learn, Create, and Stream Anywhere The Intel® Core™ N-series processor supports improved graphics processing so you can create digital content and stream videos at the same time without slowing down​

Multitask with Triple Display Support​ Unleash the power of multitasking in a compact 0.56L chassis, supporting up to three 4K displays with reduced latency, minimized power consumption, and smoother data transfer.

Versatile, Lightweight Design The lightweight 0.56-liter chassis blends well in any setting and can be VESA mounted on a wall or on the back of a monitor, saving space at home or in the office

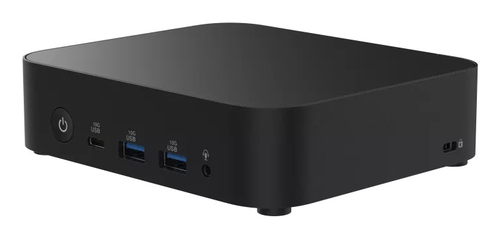

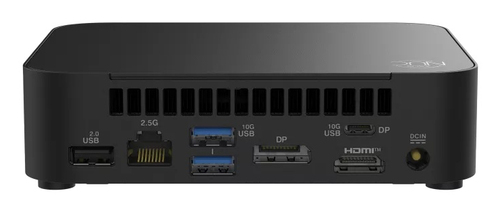

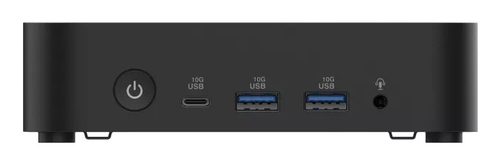

Compact Size, Abundant I/O NUC 14 Essential offers seamless connectivity with a host of I/O ports on its front and rear panels, supporting up to three 4K displays and offering high-speed networking performance. The front panel features a headset jack, one USB-C® (10 Gbps ) and a USB Type-A (10 Gbps) port; while the rear includes two USB Type-A (10 Gbps) ports, one USB 2.0, one USB-C with DisplayPort™ (10 Gbps), one DisplayPort, HDMI™, and one LAN port.

Target Usage Powered by the latest Intel® Core™ N-Series processor​, NUC 14 Essential strikes a harmonious balance between energy consumption and efficiency, at a reasonable price. From office productivity to supporting digital signage, it offers outstanding versatility and can be deployed across diverse industries.

Specifications

BrandASUS
Manufacturer part no.90AR00M2-M000M0
Our part no.CL80341
EAN0197105790605
CategoryComputers & Servers › Other (0043)
Weight1.2 kg
Processor
Processor manufacturerIntel
Processor familyIntel Core 7
Processor modelN150
Processor cores4
Processor threads4
Processor frequency3.6 GHz
Built-in processorYes
Processor cache6 MB
ECC supported by processorNo
Memory
Memory slots typeSO-DIMM
Number of memory slots1
Maximum internal memory16 GB
Supported memory typesDDR5-SDRAM
ECCNo
Non-ECCYes
Storage
Supported storage drive typesSSD
Storage drive sizes supportedM.2
SSD form factorM.2
Storage drive interfaceM.2, Serial ATA
NVMeYes
Graphics
On-board graphics cardYes
Graphics card familyIntel
Network
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Ethernet LANYes
Wi-FiYes
LAN controllerDragon RTL8125BG
BluetoothYes
Bluetooth version5.3
Ports & interfaces
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4
Ethernet LAN (RJ-45) ports1
Thunderbolt 4 ports quantity1
DC-in jackYes
Design
Product colourBlack
Cable lock slot typeKensington
Product typePC barebone
Software
Windows operating systems supportedWindows 11
Linux operating systems supportedRedHat EL Linux, Ubuntu 24.04 LTS
Power
Power supply typeExternal AC adapter
Power supply65 W
AC adapter output voltage19 V
AC adapter output current3.42 A
Weight & dimensions
Width135 mm
Depth115 mm
Height36 mm
Other features
Warranty period3 year(s)
