Description
Eaton 5P1550GR-LBS, Line-Interactive, 1.55 kVA, 1100 W, 150 V, 294 V, 47/70 Hz
Eaton 5P UPS, Global, 1U UPS, 1550 VA, 1100W, Input: (1) C14, Outputs: (6) C13, Rackmount/Wallmount, Lithium-ion battery, true sine wave, network card optional, with BS input cord
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | 5P1550GR-LBS |
| Our part no. | CL96164 |
| EAN | 3553340620942 |
| Category | Power & UPS › UPS |
| Weight | 21.3 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1.55 kVA |
| Output power | 1100 W |
| Input operation voltage (min) | 150 V |
| Input operation voltage (max) | 294 V |
| Input frequency | 47/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Heat dissipation | 113 BTU/h |
| Efficiency | 97% |
| Power factor | 1 |
| Noise level | 45 dB |
| Ports & interfaces | |

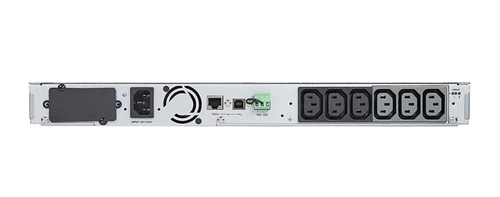

| AC outlet types | C13 coupler |
| Power plug | C13 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| RS-232 ports | 1 |
| Battery | |

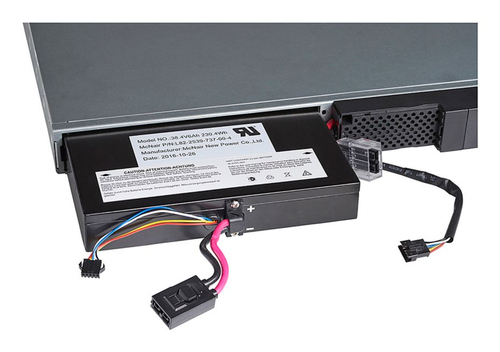

| Battery technology | Lithium-Ion (Li-Ion) |
| Typical backup time at full load | 4 min |
| Typical backup time at half load | 11 min |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Product colour | Black, Silver |
| Control type | Buttons |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 1 - 3000 m |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), IECEx, RoHS, cUL, cULus |
| Packaging content | |
| Cables included | Input power cable, RS-232, USB cable |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 436 mm |
| Depth | 553 mm |
| Height | 43 mm |
| Weight | 15.8 kg |
