Description

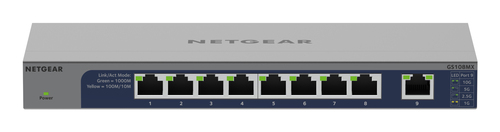

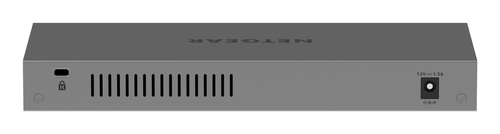

NETGEAR GS108MX-100EUS, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, Desktop/Wall-Mounting
The NETGEAR 8-port Gigabit Unmanaged Switches, GS108X and GS108MX, help businesses cost-effectively connect their network with powerful gigabit speeds.
The GS108MX features one 10G/Multi-Gig Ethernet port for non-blocking uplink while the GS108X features a 10G SFP+ port for non-blocking uplink over longer distances.
Both switches come with eight 1G Ethernet ports housed in a fanless metal case that can be placed on a desk or mounted on a wall. These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need.
- PLUG-AND-PLAY Simple set up with no software to install or configuration needed
- FULL PERFORMANCE Non-blocking switching architecture for maximum throughput at wire speed
- SILENT OPERATION The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
- ENERGY EFFICIENT Designed to optimize power usage lowering its cost to operate
- METAL CASE Durable and rugged case for long-lasting performance
- VERSATILE MOUNTING OPTIONS Supports desktop and wall placement with included wall-mount kit
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | GS108MX-100EUS |
| Our part no. | CM24055 |
| EAN | 0606449168396 |
| Category | Networking › Managed Switches |
| Weight | 1 kg |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 1 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3az |
| 10G support | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| VLAN support | No |
| Data transmission | |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 41.664 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 5 µs |
| Latency (1 Gbps) | 2 µs |
| Latency (10 Gbps) | 2 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9728 |
| Packet buffer memory | 0.768 MB |
| Security | |
| MAC address filtering | Yes |
| Queue scheduling algorithms | Priority queuing (PQ), Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast MAC address table | 16000 entries |
| Design | |
| Rack mounting | Yes |
| Form factor | Desktop/Wall-Mounting |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, Speed |
| Number of fans | 0 fan(s) |
| Electromagnetic compatibility | Class B |
| Performance | |
| Mean time between failures (MTBF) | 3514690 h |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1.5 A |
| Power consumption (max) | 5.8 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 19.91 BTU/h |
| Weight & dimensions | |
| Width | 235 mm |
| Depth | 100.8 mm |
| Height | 27 mm |
| Weight | 575 g |
| Packaging content | |
| User guide | Yes |
| Rack mount kit | Yes |
| Certificates | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), ICES, KC, RCM, UKCA, VCCI |
