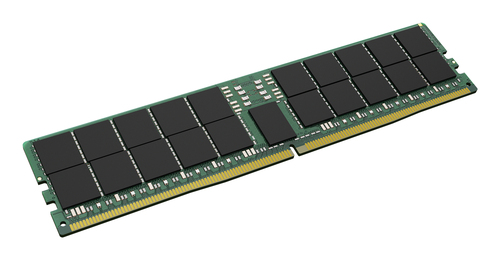

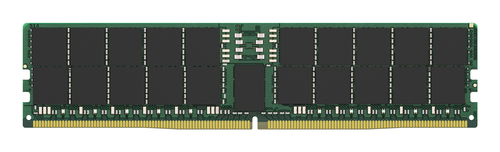

Kingston Technology KSM64R52BD4-128MB memory module 128 GB 1 x 128 GB DDR5 6400 MT/s 288-pin DIMM

Description

Kingston Technology KSM64R52BD4-128MB, 128 GB, 1 x 128 GB, DDR5, 288-pin DIMM

Kingston's KSM64R52BD4-128MB is a 16G x 80-bit (128GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 8G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Specifications

BrandKINGSTON
Manufacturer part no.KSM64R52BD4-128MB
Our part no.CM27182
EAN0740617346787
CategoryComponents & Memory › Memory (RAM)
Weight0 kg
Features
On-Die ECCYes
CAS latency52
Internal memory128 GB
Memory layout (modules x size)1 x 128 GB
Internal memory typeDDR5
Memory data transfer rate6400 MT/s
Component forPC/Server
Memory form factor288-pin DIMM
ECCNo
Buffered memory typeRegistered (buffered)
Memory ranking2
Memory voltage1.1 V
Module configuration16384M x 80
Row cycle time48 ns
Refresh row cycle time295 ns
Row active time32 ns
SPD profileYes
Programming power voltage (VPP)1.8 V
Lead platingGold
JEDEC standardYes
Operational conditions
Operating temperature (T-T)0 - 95 °C
Storage temperature (T-T)-55 - 100 °C
Sustainability
Compliance certificatesRoHS
Weight & dimensions
Width133.3 mm
Height31.2 mm
Other features
Doesn't containHalogen
