Description

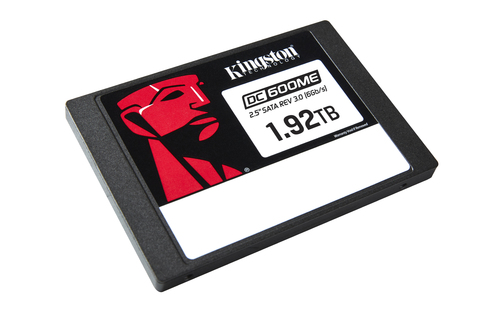

Kingston Technology 1920G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD, 1.92 TB, 2.5", 560 MB/s, 6 Gbit/s

Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers.

DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards.

Capacities available from 480GB–7.68TB* to meet your data storage requirements.

Designed for data center environments Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.

Hardware-based PLP Power loss capacitors to protect user data against unexpected power loss and enhance performance.

Delivers excellent quality of service (QoS)* Optimised performance predictability to meet service-level agreements (SLAs).

AES 256-bit Encryption with DC600ME Protect sensitive data with support for AES 256-bit hardware-based encryption and TCG Opal 2.0 security standards with DC600ME.

Capacities up to 7.68TB Upgrade and manage storage with capacities up to 7.68TB.*

Specifications

BrandKINGSTON
Manufacturer part no.SEDC600ME/1920G
Our part no.CM38051
CategoryHard Drives & SSDs › SSDs
Weight0 kg
Features
Security algorithms256-bit AES
SSD capacity1.92 TB
SSD form factor2.5"
InterfaceSerial ATA III
Memory type3D TLC NAND
Component forServer/workstation
Hardware encryptionYes
Target workloadMixed Use (MU)
Data transfer rate6 Gbit/s
Read speed560 MB/s
Write speed530 MB/s
Random read (4KB)94000 IOPS
Random write (4KB)78000 IOPS
Read latency130 µs
Write latency70 µs
S.M.A.R.T. supportYes
Hot-Plug supportYes
H/W PLP functionYes
Mean time between failures (MTBF)2000000 h
TBW rating3504
Use conditionsServer/Enterprise
Power
Power consumption (read)1.6 W
Power consumption (write)3.6 W
Power consumption (average)1.45 W
Power consumption (idle)1.3 W
Weight & dimensions
Width69.8 mm
Depth100.1 mm
Height7 mm
Weight69 g
Packaging data
Package width129.5 mm
Package depth9.14 mm
Package height184.2 mm
Package weight91.2 g

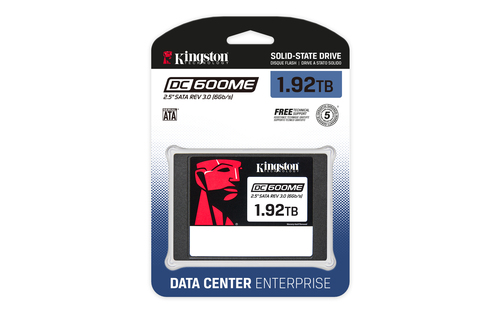

Package typeHanging box
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating vibration2.17 G
Non-operating vibration20 G
Logistics data
Country of originChina, Taiwan
Master (outer) case width135.9 mm
Master (outer) case length203.2 mm
Master (outer) case height69.8 mm
Master (outer) case gross weight989.98 g
Products per master (outer) case10 pc(s)
