Description

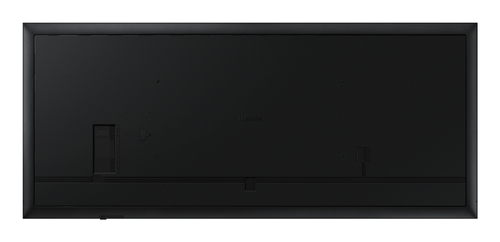

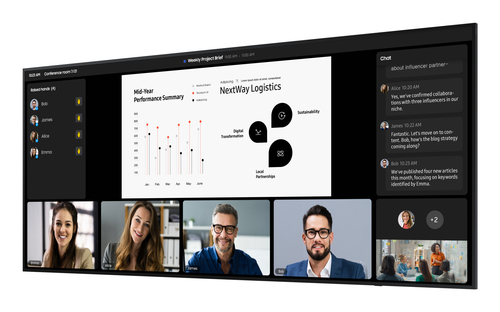

Samsung QPDX-5K, Digital signage flat panel, 2.67 m (105"), LCD, 5120 x 2160 pixels, Wi-Fi, 24/7
Specifications
| Brand | SAMSUNG |
|---|---|
| Manufacturer part no. | LH105QPD5BGXEN |
| Our part no. | CM56656 |
| EAN | 8806095807201 |
| Category | Monitors & Displays › Large Format Displays |
| Weight | 0 kg |
| Display | |
| Panel type | VA |
| Display diagonal | 2.67 m (105") |
| Display technology | LCD |
| Display resolution | 5120 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 5K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 21:9 |
| Response time | 6 ms |
| Contrast ratio (typical) | 4000:1 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.1595 x 0.4785 mm |
| Horizontal scan range | 30 - 81 kHz |
| Vertical scan range | 48 - 75 Hz |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB port | Yes |
| USB ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| Audio | |
| Built-in speaker(s) | No |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 1000 x 400 mm |
| Performance | |
| Purpose | Corporate |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power | |
| Power consumption (typical) | 550 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
| Internal memory | 16 GB |
| Operating system installed | Tizen 7.0 |
| Weight & dimensions | |
| Display width | 2484.3 mm |
| Display depth | 48.1 mm |
| Display height | 1068 mm |
| Display weight | 55.6 kg |
| Packaging data | |
| Package width | 2668 mm |
| Package depth | 275 mm |
| Package height | 1190 mm |
| Package weight | 78.1 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
