Description

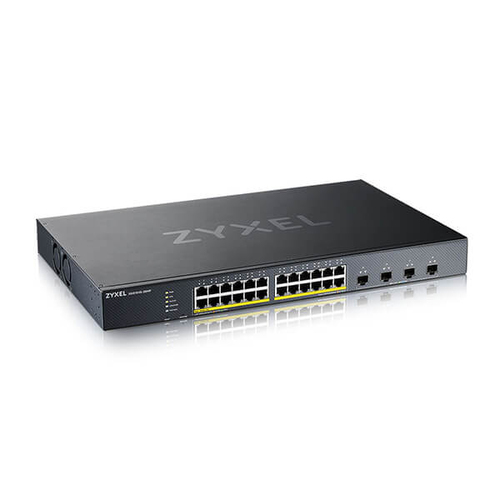

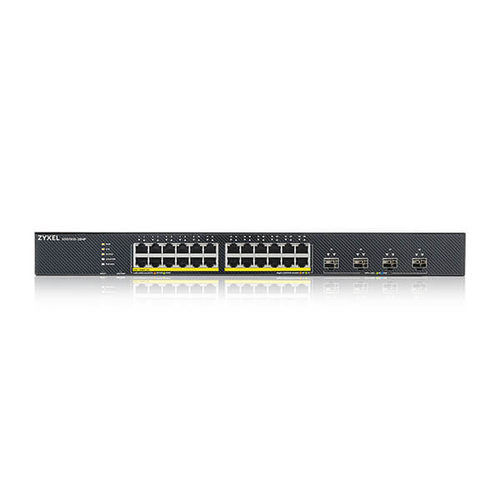

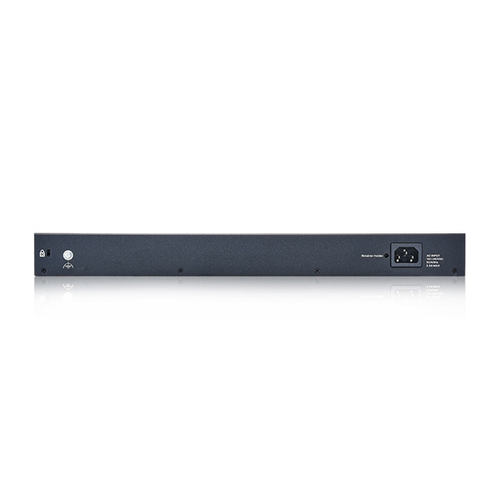

Zyxel XGS1935-28HP, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

XGS1935-28HP

The Zyxel XGS1935 Series is a family of Lite-L3 Smart Managed Switch that consists of four models, including 28- and 52-port, PoE and non-PoE options. The four models all come with four-addition 10GbE fiber connectivity cater to your business’s increasing need for high network speeds. This Series supports NebulaFlex which provides extended flexibility for users to easily switch network management modes between standalone and our license-free Nebula cloud management platform.

Flexible 10GbE support - upgrade wired network at a reasonable price.

As SMBs generate more data from daily office applications, the XGS1935 Series, with Gigabit connectivity and four 10GbE uplinks, is an ideal option for those needing basic functions, easier management, and a cost-effective way to upgrade their networks.

Powering more devices intelligently.

The PoE models (XGS1935-28HP/52HP) feature compact designs and support PoE+, delivering 30W per port, ideal for dense PoE deployments. With a 375W power budget, they meet the demands of power-hungry devices. The power consumption mode enhances efficiency for better ROI, enabling more PD devices to connect within the system.

Manage it your way!

The XGS1935 Series offers free Nebula cloud management, enabling remote network control via web interface or mobile app, without extra costs for software or hardware controllers. The Nebula app allows quick status checks and remote configuration of key functions, like rebooting APs or cameras via PoE power cycling and blocking clients with unusual traffic. Standalone mode is also available for those who prefer it.

Web-managed with advanced features.

Advanced features like static routing, VLAN, QoS, IGMP Snooping, Link Aggregation, IPv6, and DoS prevention can be configured through an intuitive web-based interface in standalone mode. A step-by-step wizard simplifies setup, allowing quick configuration with just a few clicks.

Silent, and reliable operation.

This series includes both a fanless model (XGS1935-28 only) and models with a built-in smart fan. The smart fan automatically adjusts its speed based on the device’s temperature, providing near-silent operation and a stable connection for your daily work.

Built with nature in mind.

The XGS1935 series is built with a more compact chassis, reducing packaging by up to 36% and weight by up to 22% compared to the previous XGS1930 series. These efforts have resulted in a 48% increase in units per pallet and a reduced carbon footprint.

Specifications

BrandZYXEL
Manufacturer part no.XGS1935-28HP-GB0101F
Our part no.CM57624
EAN4718937636341
CategoryNetworking › Switches
Weight5.2 kg
Management features
Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
Traffic classificationYes
Traffic shapingYes
ARP inspectionYes
System event logYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Fiber ports quantity4
Fiber optic connectorSFP+
Network
Networking standardsIEEE 802.3at
VLAN supportYes
Data transmission
Switching capacity128 Gbit/s
Forwarding rate95.2 Mpps
MAC address table16000 entries
Jumbo frames supportYes
Jumbo frames9
Packet buffer memory1.5 MB
Design
Rack mountingYes
Performance
Internal memory512 MB
Flash memory32 MB
Noise level48.8 dB
Mean time between failures (MTBF)786686 h
Power
Power sourceAC
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (typical)15.9 W
Power consumption (max)452.6 W
Surge protectionYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE+
Power over Ethernet (PoE) ports quantity24
Total Power over Ethernet (PoE) budget375 W
Operational conditions
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 95%
Heat dissipation264.7 BTU/h
Weight & dimensions
Width440 mm
Depth270 mm
Height43 mm
Weight3.6 kg
Packaging content
Cables includedAC
Rack mount kitYes
Packaging data
Package width508 mm
Package depth394 mm
Package height90 mm
Package weight5.13 kg
