Description
Manhattan Wall Mount With Extension for TV & Monitors (Tiltable Anti Theft), For screens 37" to 100", VESA compatibility: all between 200x200mm to 800x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 75kg, Bracket, 200 x 200 mm, 800 x 400 mm, -10 - 5°, -5 - 5°, Steel, Black
Adjustable, Secure TV Wall Bracket that Extends for Easy Cabling This TV Wall Mount from Manhattan is your convenient solution to safely hold your flat or curved 43" to 90" display up to 75 kg (165 lbs.). Mount your screen just 75 mm (3 in.) from the wall for a sleek, modern look. Need easier access to your cables? Its innovative design allows an optional extension of an additional 60 mm (2.4 in.), making it easier than ever to manage your cabling without hassle.

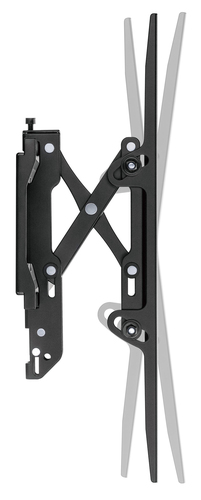

Optimal Viewing Angles Achieve the perfect view with a versatile +5 to -10° tool-free tilt, +/-5° swivel, and +/-6 mm post-installation leveling adjustment.
Robust and Reliable Construction Constructed with heavy-duty, 2 mm thick reinforced steel and a durable powder coating, this mount provides strength and reliability.
Precision Installation Made Simple Included is an attachable bubble level for perfect alignment during installation. The snap-in spring locks with release cords make mounting or removing your TV a breeze, adding an extra layer of safety and ease.
Enhanced Security Ideal for public or commercial spaces, the anti-theft locking option (padlock required, not included) provides an extra measure of security, perfect for digital signage or any setting where additional protection is desired, like office, hospitality or classroom.
Specifications
| Brand | MANHATTAN |
|---|---|
| Manufacturer part no. | 461863 |
| Our part no. | CN24464 |
| EAN | 0766623461863 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 4.6 kg |
| Mounting | |
| Maximum weight capacity | 75 kg |
| Minimum screen size | 109.2 cm (43") |
| Number of displays supported | 1 |
| Maximum screen size | 2.29 m (90") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 400 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400,800 x 400 |
| Mounting type | Wall |
| Ergonomics | |
| Tilt adjustment | Yes |
| Tilt angle range | -10 - 5° |
| Swivelling | Yes |
| Swivel angle range | -5 - 5° |
| Distance to the wall (max) | 13.6 cm |
| Distance to the wall (min) | 7.5 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Anti-theft function | Yes |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Weight & dimensions | |
| Width | 954 mm |
| Depth (max) | 13.6 cm |
| Height | 430 mm |
| Weight | 4.21 kg |
| Packaging data | |
| Package width | 165 mm |
| Package depth | 980 mm |
| Package height | 57 mm |
| Package weight | 4.65 kg |
| Logistics data | |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 995 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 19.5 kg |
| Products per master (outer) case | 4 pc(s) |
