Description

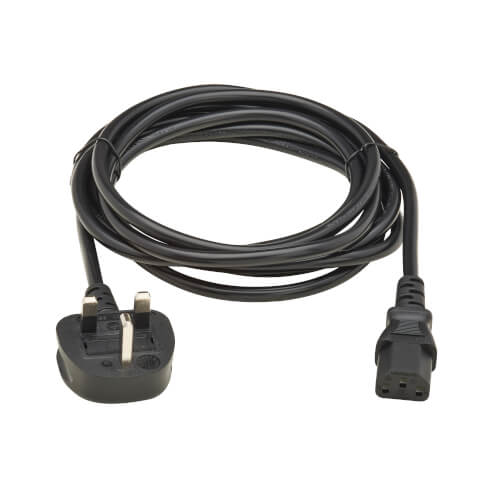

Eaton P056-03M-UK, 3 m, BS 1363, IEC C13, H05VV-F, 250 V, 10 A
Connects a PDU or UPS system with a C14 inlet to a BS 1363 wall outlet.
Power Cord Connects Data Center Equipment to Reliable AC Power This VDE-compliant power cable connects a PDU or UPS system with a C14 inlet to a BS 1363 wall outlet. It can also connect a computer, server, monitor or other device to a PDU, UPS or surge protector with BS 1363 outlets. Or you can extend an existing power connection up to three meters (9.8 feet). The P056-03M-UK features a BS 1363 end for connecting to an AC power source and an IEC-320-C13 end for connecting to a network device in a data center or other IT application.
H05VV-F Jacket Is Fully VDE-Compatible for European Applications The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | P056-03M-UK |
| Our part no. | CN25085 |
| Category | Cables & Adapters › Patch Cables & Power |
| Weight | 0 kg |
| Features | |
| Product colour | Black |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable length | 3 m |

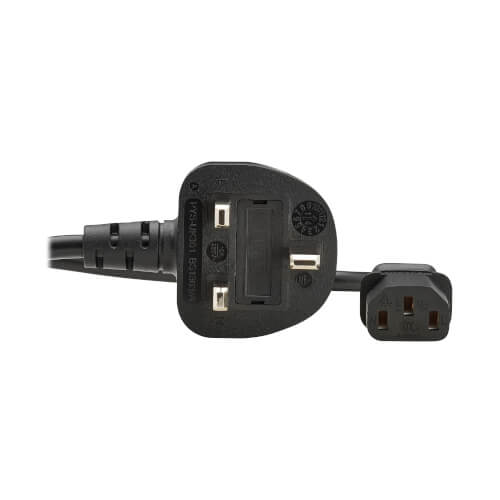

| Connector 1 | BS 1363 |

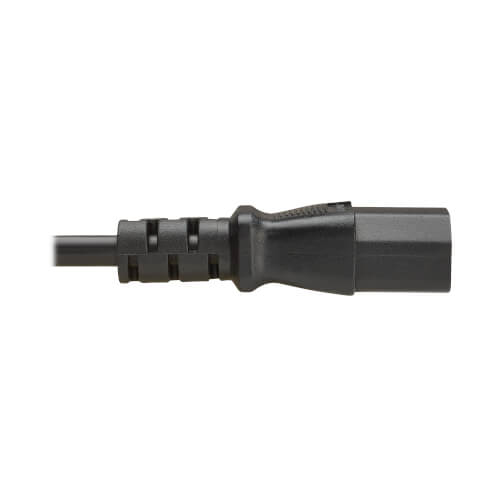

| Connector 2 | IEC C13 |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| Cable type | H05VV-F |
| Number of conductors | 3 |
| Power | |
| Input voltage | 250 V |
| Input current | 10 A |
| Operational conditions | |
| Operating temperature (T-T) | -15 - 70 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Certificates | |
| Certification | CE (Europe); REACH; RoHS; UKCA |
| Weight & dimensions | |
| Diameter | 7 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 202.9 mm |
| Package depth | 12.7 mm |
| Package height | 254 mm |
| Package weight | 330 g |
