Description

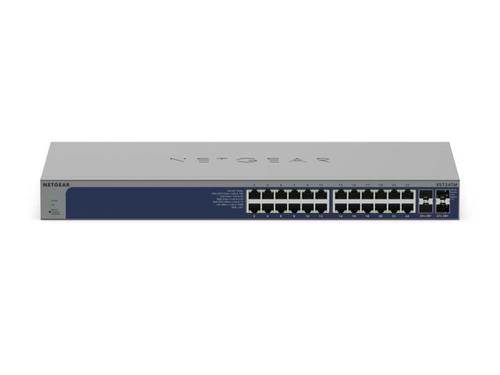

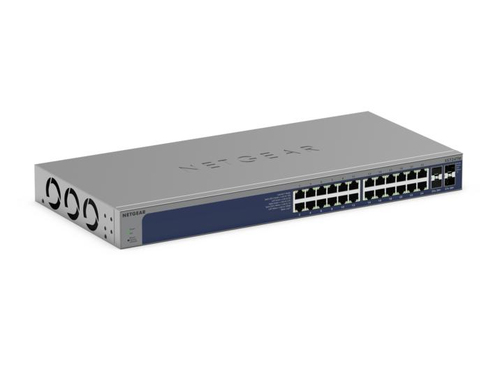

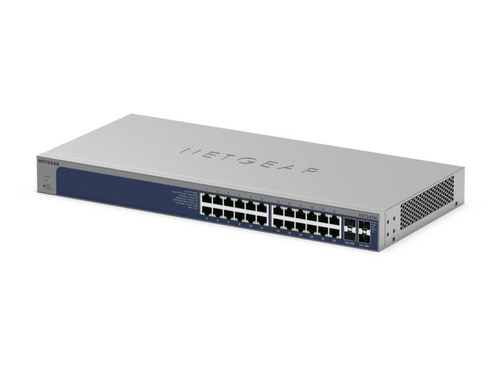

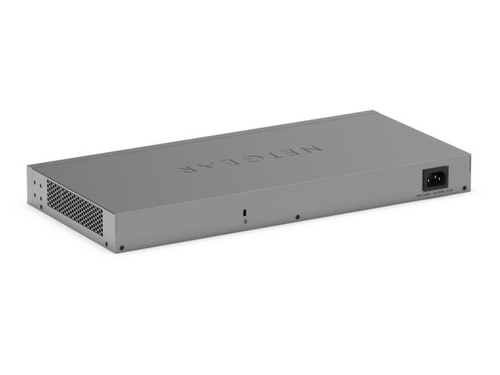

NETGEAR XS724TM, Managed, L2/L3/L4, Full duplex, Rack mounting
Total Network Solution helps you get the most out of your network Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
NETGEAR INSIGHT REMOTE MANAGEMENT Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | XS724TM-100EUS |
| Our part no. | CN41414 |
| EAN | 0606449165579 |
| Category | Networking › Switches |
| Weight | 4.7 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| 10G Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Network | |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Routing entries | 64 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| IPv4 routes | 64 |
| IPv6 routes | 32 |
| VLAN support | Yes |
| Number of VLANs | 512 |
| Data transmission | |
| Switching capacity | 560 Gbit/s |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4 MB |
| Security | |
| DHCP features | DHCP client, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv6 entries | 100 |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, EAP |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Password protection | Yes |
| Authentication type | RADIUS |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD snooping support (v1 and v2) |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 1250 MHz |
| Memory type | RAM |
| Internal memory | 1000 MB |
| Flash memory | 256 MB |
| Noise level | 29.61 dB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 408354.7 h |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| Power consumption (max) | 92.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 315.66 BTU/h |
| Weight & dimensions | |
| Width | 400 mm |
| Depth | 204 mm |
| Height | 43.2 mm |
| Weight | 3.38 kg |
