Description

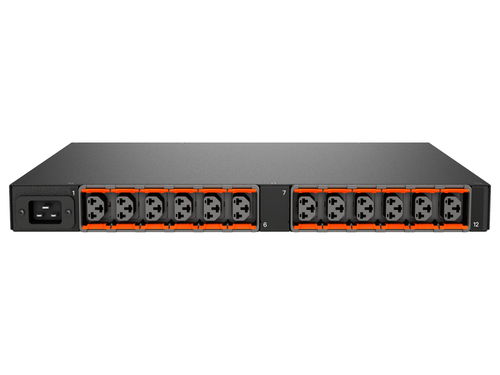

Vertiv Geist MUU5M1R5-12CF17-2C20A9H00-S, Monitored, Switched, 0U, Single-phase, Horizontal, Black, LCD

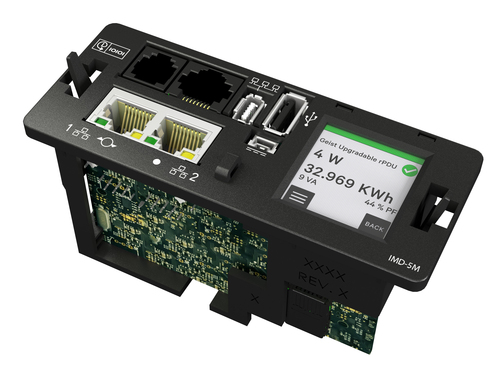

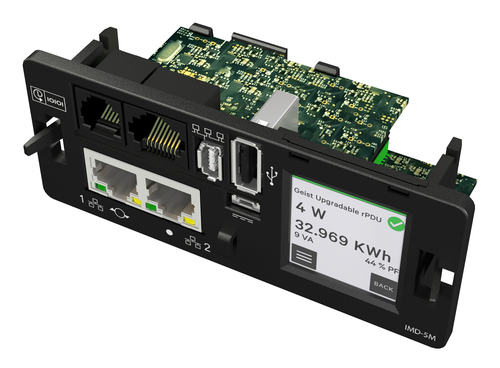

Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | VP7U21A0 |
| Our part no. | CN61711 |
| EAN | 4061471345171 |
| Category | Power & UPS › PDUs |
| Weight | 6.7 kg |
| Design | |
| PDU types | Monitored, Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Horizontal |
| Product colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
| Features | |
| LED indicators | Yes |
| Cable length | 3 m |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Supported network protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
| Power | |
| Nominal input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 20 A |
| Load capacity | 230 VA |
| Power protection features | Over current |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 305 mm |
| Height | 44 mm |
| Packaging data | |
| Package weight | 4.54 kg |
