Description

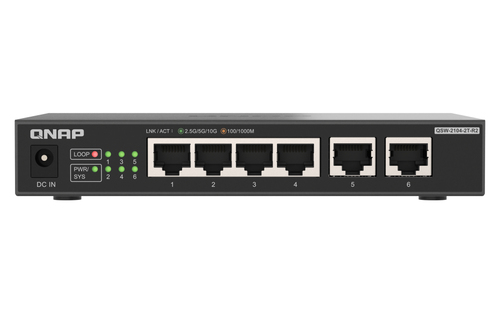

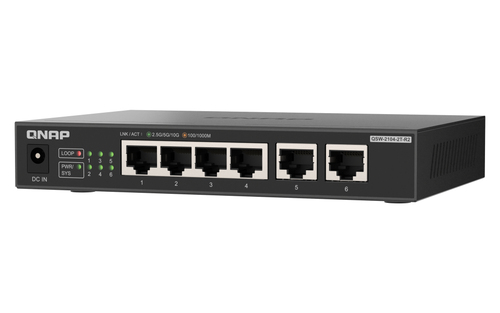

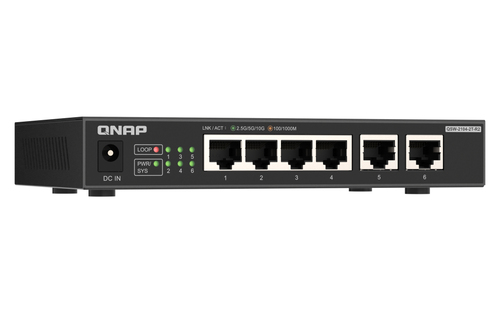

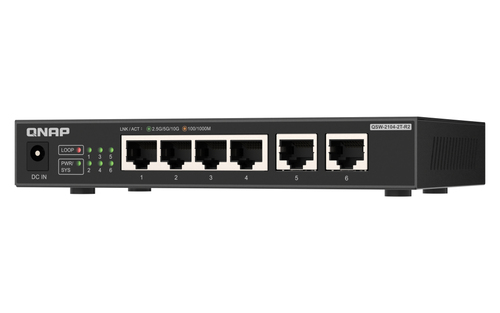

QNAP QSW-2104-2T-R2, Unmanaged, 10G Ethernet (100/1000/10000), Desktop
QSW-2104-2T-R2 4-port 2.5GbE and 2-port 10GbE Multi-Gig unmanaged switch. Affordably upgrade to high-speed networking.
Upgrade now with our wallet-friendly compact 6-port high-speed switch! The QNAP QSW-2104-2T-R2 unmanaged switch with four 2.5GbE ports and two 10GbE ports allows you to upgrade to stable high-speed networking at an affordable price. Integrated seamlessly with Wi-Fi 6/6E/7 for optimal wireless network performance, the QSW-2104-2T-R2 is perfect for offices and multimedia teams, providing high-speed data transfer, large file sharing, and efficient collaborative workflows. The QSW-2104-2T-R2 is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
Specifications
| Brand | QNAP |
|---|---|
| Manufacturer part no. | QSW-2104-2T-R2 |
| Our part no. | CN63583 |
| EAN | 4711103085738 |
| Category | Networking › Managed Switches |
| Weight | 0 kg |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 2.5G Ethernet (copper) ports quantity | 4 |
| 10G Ethernet (copper) ports quantity | 2 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 60 Gbit/s |
| Throughput | 30 Gbit/s |
| MAC address table | 4000 entries |
| Security | |
| Loop protection | Yes |
| Design | |
| Form factor | Desktop |
| Product colour | Black |
| LED indicators | Yes |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| Input current | 12 A |
| Input voltage | 1.5 V |
| Power consumption (max) | 18 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Warranty period | 2 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 110 mm |
| Height | 26 mm |
| Weight | 450 g |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 254 mm |
| Package depth | 128 mm |
| Package height | 47 mm |
| Package weight | 741 g |
| Certificates | |
| Certification | CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC |
| Logistics data | |
| Country of origin | Taiwan |
| Products per master (outer) case | 15 pc(s) |
