Description

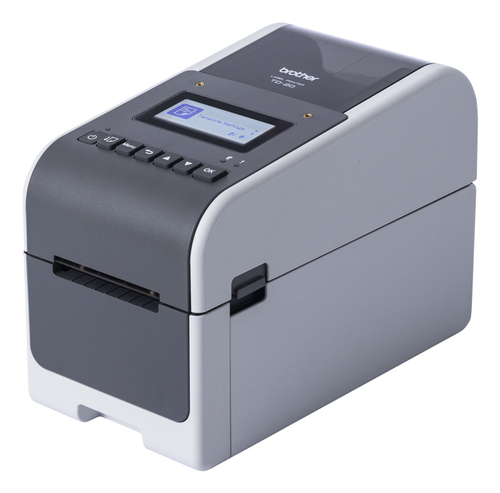

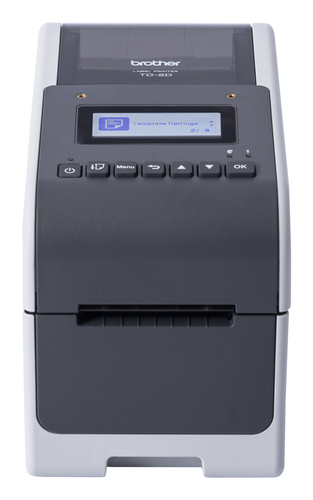

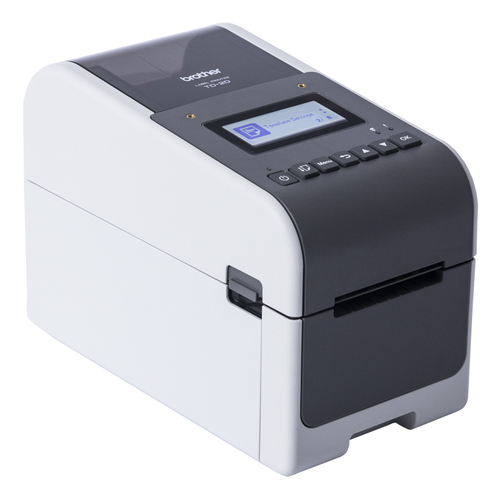

Brother TD-2350D203, Direct thermal, 203 x 203 DPI, 152.4 mm/sec, Wired & Wireless, Black, Grey
A versatile 2" desktop label printer with WiFi & Bluetooth.
With an intuitive LCD screen, the TD-2350D203 is a user-friendly desktop label printer. The professional quality resolution, makes this label maker ideal for printing 2D barcodes. Barcodes are easily scanned and quickly processed.
The Bluetooth connectivity allows for setup and configuration with a smartphone or tablet using the Mobile Deploy App. Whilst wireless connectivity removes the need of cables for the network.
The printer has a range of specialised features and high-quality print resolution, the TD-2D is the perfect label printer for retail, healthcare and food traceability – where you need to be able to print high-quality receipts, labels or wristbands in any location.
Intuitive LCD The integrated LCD screen makes setting-up and configuration a simple task.
The backlit screen with user-friendly buttons, helps you to quickly get up and running.
Space saving design A compact 2 inch label printer, designed to fit on most worksurfaces without compromising on working space.
Professional print quality Print in high resolution up to 203dpi for any professional setting.
Integrated USB host A USB-host port is built-in as standard, enabling a barcode reader or weighing scales to be connected. Barcodes are scanned to create print information.
Using pre-defined templates, your information is printed on to labels.
Remote update Enabling IT administrators to remotely update and configure many Brother label printers.
Updates are easily uploaded to an online location and the URLs shared with users to install the latest configuration via the Mobile Deploy App.
Software support Brother provides the tools for developers to integrate their printing applications. Printer drivers are available for Windows Operating Systems.
Software Development Kits are available to embed label printing into existing software programs.
Specifications
| Brand | BROTHER |
|---|---|
| Manufacturer part no. | TD2350D203ZU1 |
| Our part no. | CN73528 |
| EAN | 5023821218190 |
| Category | Label & Receipt Printers › Mobile Label Printers |
| Weight | 2.9 kg |
| Printing | |
| Print technology | Direct thermal |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 152.4 mm/sec |
| Maximum printing width | 5.9 cm |
| Paper handling | |
| Maximum label length | 3 m |
| Media thickness | 0.058 - 0.279 mm |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Performance | |
| Page description languages | ESC P, Raster_P |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Built-in barcodes | AZTECCODE, Data Matrix, MSI, CODABAR (NW-7), UPC-A, MaxiCode, Micro QR Code, UPC-E, EAN13, Code 128 (A/B/C), EAN8, POSTNET, Code 39, GS1 DataBar, QR Code, Code 93 |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA2-PSK, PEAP, EAP-FAST, WPA3-SAE, EAP-TLS, EAP-TTLS, WPA-PSK |
| Design | |
| Product colour | Black, Grey |
| Built-in display | Yes |
| Display | LCD |
| Control type | Buttons |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 110 mm |
| Depth | 215 mm |
| Height | 172 mm |
| Weight | 1.33 kg |
| Packaging content | |
| Cables included | AC, USB |
| Other features | |
| Warranty period | 3 year(s) |
