Description

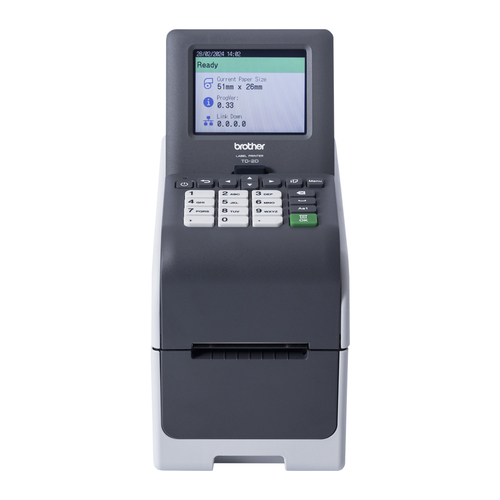

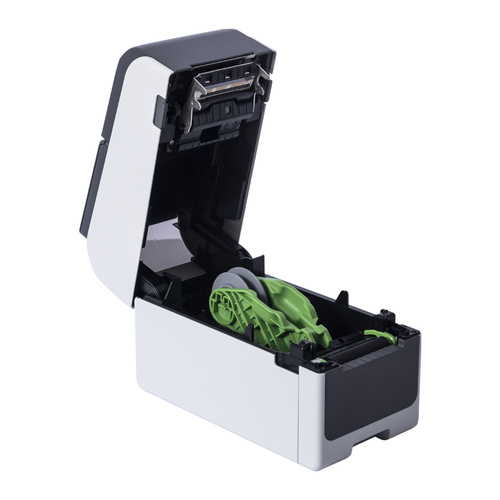

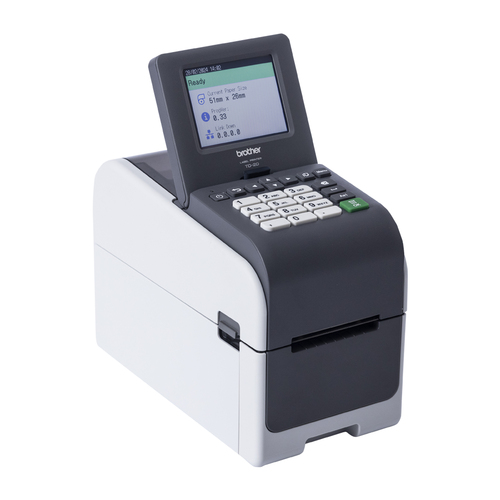

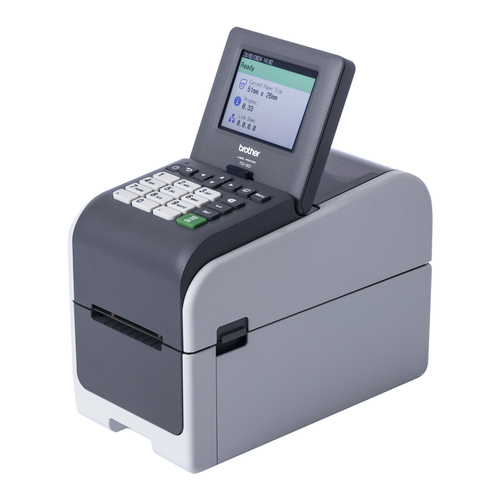

Brother TD-2320DSA300, Direct thermal, 300 x 300 DPI, 152.4 mm/sec, Wired, Black, Grey
The professional, high-resolution 2" desktop network label printer with 3.5" colour touch screen display.
Increasing productivity and reducing costs are key priorities in any workplace. And when it comes to label printing, the TD-2320DSA300 combines proven desktop printer performance with the versatility to operate in multiple locations, helping you to achieve greater efficiencies across your business. The TD-2320DSA300 works as a standalone printing solution with its 3.5" colour touch screen display and keyboard.
With a range of specialised features and high-quality print resolutions, the TD-2D is the perfect label printer for retail price mark down labels and food traceability ingredient labels – where you need to print high-quality labels in any location.
Complete print solution Optional accessories to suit your business needs.
Accessories include battery (PA-BT-004), cutter (PA-CU-004) or label peeler (PA-LP-002).
Professional print quality Print in high resolution up to 300dpi for any professional setting.
Space saving design A compact 2 inch label printer, designed to fit on most worksurfaces without compromising on working space.
Cut or peel A Cutter or peeler are the perfect accessories for adding efficiencies to your business.
Integrated USB host A USB-host port is built-in as standard, enabling a barcode reader or weighing scales to be connected. Barcodes are scanned to create print information.
Using pre-defined templates, your information is printed on to labels.
3.5" Colour touch screen A user-friendly colour touch screen display allows for stand alone printing and on-the-go editing of templates.
Specifications
| Brand | BROTHER |
|---|---|
| Manufacturer part no. | TD2320DSA300ZU1 |
| Our part no. | CN73529 |
| Category | Label & Receipt Printers › Mobile Label Printers |
| Weight | 0 kg |
| Printing | |
| Print technology | Direct thermal |
| Colour | No |
| Maximum resolution | 300 x 300 DPI |
| Print speed | 152.4 mm/sec |
| Maximum printing width | 5.9 cm |
| Paper handling | |
| Maximum label length | 3 m |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Performance | |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Built-in barcodes | AZTECCODE, Data Matrix, MSI, CODABAR (NW-7), UPC-A, MaxiCode, Micro QR Code, UPC-E, EAN13, Code 128 (A/B/C), EAN8, POSTNET, Code 39, GS1 DataBar, QR Code, Code 93 |
| Design | |
| Product colour | Black, Grey |
| Built-in display | Yes |
| Display diagonal | 8.89 cm (3.5") |
| Colour display | Yes |
| Control type | Buttons, Touch |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Mobile operating systems supported | Android, iOS |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 215 mm |
| Depth | 110 mm |
| Height | 172 mm |
| Weight | 1.33 kg |
| Packaging content | |
| Cables included | AC, USB |
| Other features | |
| Warranty period | 3 year(s) |
