Description

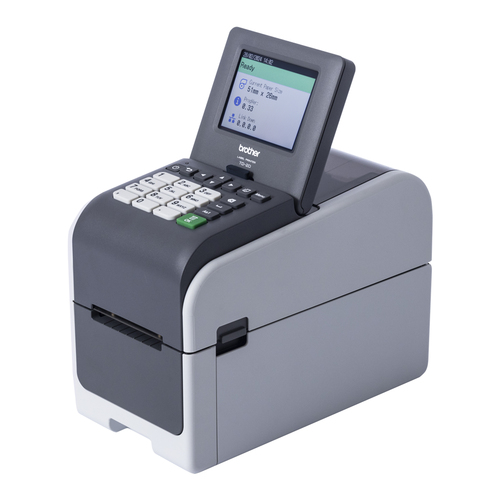

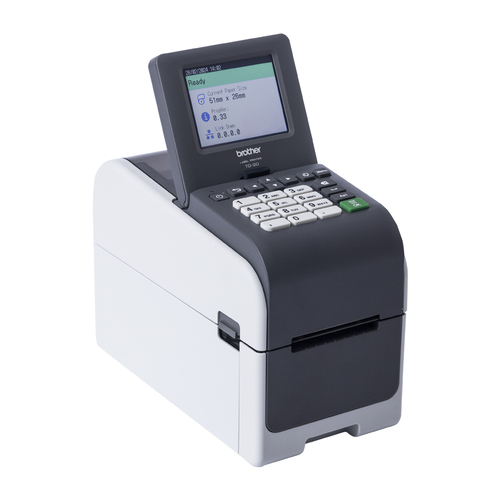

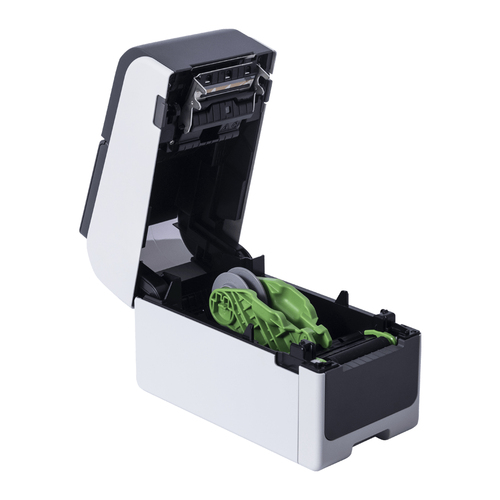

Brother TD-2350DSA203, Direct thermal, 203 x 203 DPI, 152.4 mm/sec, Wired & Wireless, Black, Grey
The professional 2" desktop label printer with 3.5" colour touch screen display and wireless connectivity.
Increasing productivity and reducing costs are key priorities in any workplace. And when it comes to label printing, the TD-2350DSA203 combines proven desktop printer performance with the versatility to operate in multiple locations, helping you to achieve greater efficiencies across your business. The TD-2350DSA203 works as a standalone printing solution with its 3.5" colour touch screen display and WiFi connectivity.
The Bluetooth connectivity allows for setup and configuration with a smartphone or tablet using the Mobile Deploy App. Whilst wireless connectivity removes the need of cables for the network.
With a range of specialised features and high-quality print resolutions, the TD-2D is the perfect label printer for retail price mark down labels and food traceability ingredient labels – where you need to print high-quality labels in any location.
Complete print solution Optional accessories to suit your business needs.
Accessories include battery (PA-BT-004), cutter (PA-CU-004) or label peeler (PA-LP-002).
Space saving design A compact 2 inch label printer, designed to fit on most worksurfaces without compromising on working space.
Professional print quality Print in high resolution up to 203dpi for any professional setting.
Integrated USB host A USB-host port is built-in as standard, enabling a barcode reader or weighing scales to be connected. Barcodes are scanned to create print information.
Using pre-defined templates, your information is printed on to labels.
Remote update Enabling IT administrators to remotely update and configure many Brother label printers.
Updates are easily uploaded to an online location and the URLs shared with users to install the latest configuration via the Mobile Deploy App.
3.5" Colour touch screen A user-friendly colour touch screen display allows for stand alone printing and on-the-go editing of templates.
Specifications
| Brand | BROTHER |
|---|---|
| Manufacturer part no. | TD2350DSA203ZU1 |
| Our part no. | CN73530 |
| Category | Label & Receipt Printers › Mobile Label Printers |
| Weight | 0 kg |
| Printing | |
| Print technology | Direct thermal |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 152.4 mm/sec |
| Maximum printing width | 5.9 cm |
| Paper handling | |
| Ribbon length | 3 m |
| Maximum label length | 3 m |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 5.2+EDR |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Performance | |
| Page description languages | ESC P, Raster_P |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, MSI, MaxiCode, Micro QR Code, POSTNET, QR Code, UPC-A, UPC-E |
| Security algorithms | 64-bit WEP, 128-bit WEP, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP, WPA-PSK, WPA2-PSK, WPA3-SAE |
| Design | |
| Product colour | Black, Grey |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 8.89 cm (3.5") |
| Colour display | Yes |
| Control type | Buttons, Touch |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 224 mm |
| Depth | 119 mm |
| Height | 158 mm |
| Weight | 1.77 kg |
| Packaging content | |
| Cables included | USB |
| Other features | |
| Warranty period | 3 year(s) |
