Description

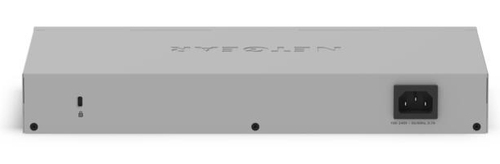

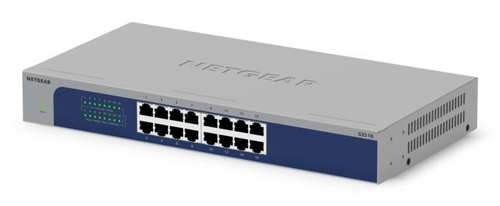

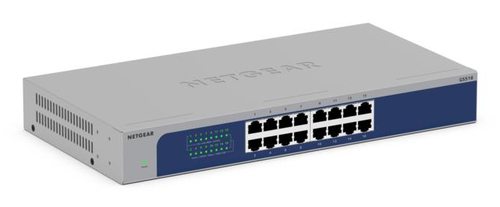

NETGEAR GS516-300EUS, Unmanaged, Gigabit Ethernet (10/100/1000), Rack mounting
RELIABLE PERFORMANCE Superior network performance at non-blocking rate delivers true gigabit speed with no compromise
ENERGY EFFICIENT Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
PLUG-AND-PLAY No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS Install your switch on your desktop, mount it to your wall, or add it to a standard 19 inch (44 mm) rack with the hardware provided in the box
METAL CASE Durable and rugged case for long-lasting performance
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | GS516-300EUS |
| Our part no. | CN79711 |
| EAN | 0606449164565 |
| Category | Networking › Unmanaged Switches |
| Weight | 2.4 kg |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
| Latency (10-100 Mbps) | 30 µs |
| Latency (1 Gbps) | 15 µs |
| Latency (10 Gbps) | 35 µs |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Design | |
| Rack mounting | Yes |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, Speed |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 10 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
| Width | 328 mm |
| Depth | 169 mm |
| Height | 43 mm |
| Weight | 1.49 kg |
| Certificates | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), ISED, KC, RCM, UKCA, VCCI |
