Description

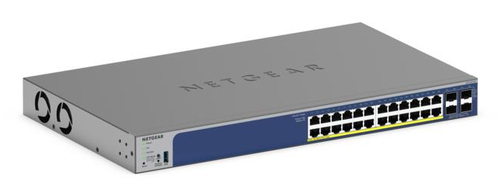

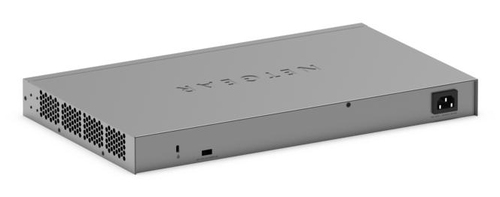

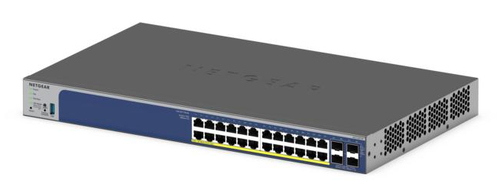

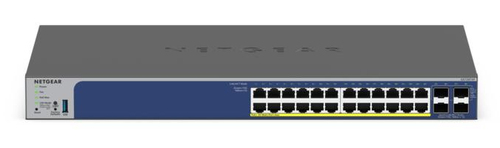

NETGEAR GS728TX, L2/L3, 10G Ethernet (100/1000/10000), Full duplex, Rack mounting
NETGEAR provides complimentary technical support for NETGEAR products for 90 days from the original date of purchase.
NETGEAR ProSupport for Home All-In-One Extended Warranty and Support from NETGEAR certified experts. Protect your NETGEAR purchase and fix issues for your entire home network. Two plans are available for you to choose from.
NETGEAR ProSupport for Business Get the expert support and extended coverage your business needs. NETGEAR offers a range of ProSupport services designed to supplement your technical support and warranty entitlements, giving you access to specialized expertise when you need it most.
NETGEAR Safety & Security Protecting your network is essential, and we are committed to maintaining the security of our products to help keep you safe online. We aim to provide transparency by publishing a list of products nearing their End of Service stage, issuing Security Advisories to address identified vulnerabilities, and offering multiple ways to report potential security concerns.
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | GS728TX-300EUS |
| Our part no. | CN79712 |
| EAN | 0606449173147 |
| Category | Networking › Managed Switches |
| Weight | 2.5 kg |
| Management features | |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP+ modules quantity | 4 |
| SFP+ module slots quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 256 |
| Data transmission | |
| MAC address table | 16000 entries |
| Static route | Yes |
| Number of static routes | 32 |
| Packet buffer memory | 16 MB |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) ingress | 100 |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Flash memory | 64 MB |
| Noise level | 26.8 dB |
| Mean time between failures (MTBF) | 1252990 h |
| Power | |
| Power consumption (typical) | 748.18 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 257 mm |
| Height | 43.2 mm |
| Weight | 3.8 kg |
| Packaging content | |
| Cables included | AC |
| Manual | Yes |
