Description

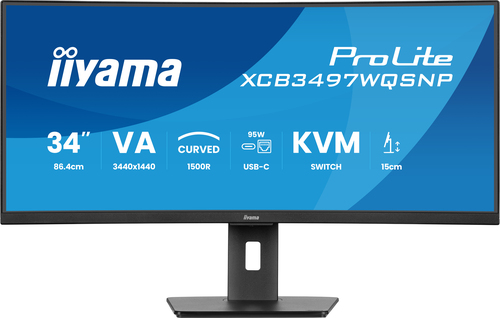

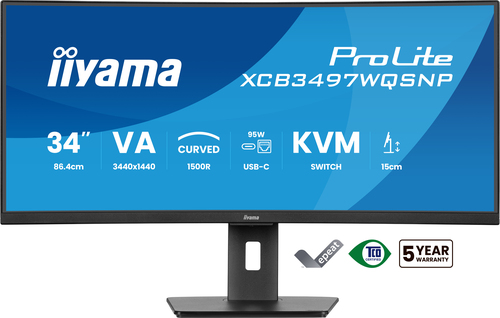

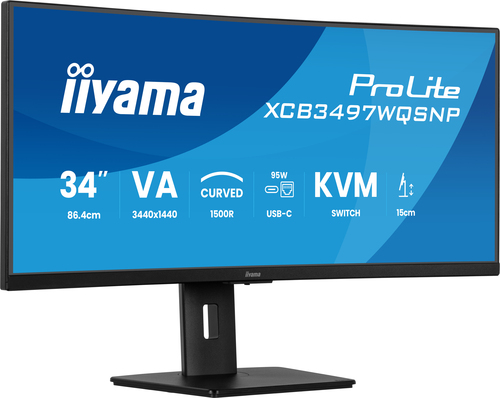

iiyama ProLite XCB3497WQSNP-B1, 86.4 cm (34"), 3440 x 1440 pixels, UltraWide Quad HD, LED, Black
The XCB3497WQSNP is a 34-inch curved monitor that incorporates a KVM switch and a USB-C dock to simplify your workspace. The KVM switch enhances multitasking by allowing you to control multiple computers from a single monitor, keyboard, and mouse. The USB-C dock reduces cable clutter and simplifies connectivity even further, allowing a single cable to carry video, data, and power to charge your notebook. Additionally, when the monitor is connected to a LAN network, your notebook automatically gains network access. The VA panel technology delivers high contrast and deep black levels and wide viewing angles for consistent image quality regardless of your position for a richer and more vivid viewing experience. For optimal comfort, the 15cm height-adjustable stand allows you to customize the screen position, while the Flicker-Free panel and Blue Light reduction function help minimize eye strain.
Specifications
| Brand | IIYAMA |
|---|---|
| Manufacturer part no. | XCB3497WQSNP-B1 |
| Our part no. | CN88403 |
| EAN | 4948570125142 |
| Category | Monitors & Displays › Touch & Portable Monitors |
| Weight | 14.1 kg |
| Display | |
| Display diagonal | 86.4 cm (34") |
| Display resolution | 3440 x 1440 pixels |
| HD type | UltraWide Quad HD |
| Native aspect ratio | 21:9 |
| Display technology | LED |
| Panel type | VA |
| Touchscreen | No |
| Display brightness (typical) | 350 cd/m² |
| Response time (MPRT) | 0.4 ms |
| Display surface | Matt |
| Screen shape | Curved |
| Screen curvature rating | 1500R |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 80000000:1 |
| Maximum refresh rate | 120 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.232 x 0.232 mm |
| Horizontal scan range | 30 - 180 kHz |
| Viewable size, horizontal | 79.7 cm |
| Viewable size, vertical | 33.4 cm |
| Display diagonal (metric) | 86.7 cm |
| Colour gamut standard | NTSC, sRGB |
| sRGB coverage (typical) | 99% |
| NTSC coverage (typical) | 93% |
| Performance | |
| AMD FreeSync | Yes |
| AMD FreeSync type | FreeSync Premium |
| VESA Adaptive Sync support | Yes |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Number of downstream ports | 4 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 95 W |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 1.4/2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort out version | 1.4 |
| Headphone out | Yes |
| Built-in KVM switch | Yes |
| HDCP | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | 5 - 23° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 31.7 kWh |
| Power consumption (typical) | 32 W |
| Power consumption (standby) | 32 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Width (with stand) | 807 mm |
| Depth (with stand) | 245.5 mm |
| Height (with stand) | 576 mm |
| Weight (with stand) | 9.7 kg |
| Width (without stand) | 807 mm |
| Depth (without stand) | 110 mm |
| Height (without stand) | 426 mm |
| Packaging data | |
| Package width | 928 mm |
| Package depth | 186 mm |
| Package height | 480 mm |
| Package weight | 14.1 kg |
| Package type | Box |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort, USB Type-C |
| Sustainability | |
| Sustainability certificates | ErP, TCO |
| Other features | |
| Packaging content | quick start guide, safety guide |
| User controls | picture adjust (brightness, contrast, Eco, ACR, OD, AdaptiveSync, motion blur reduction, X-Res technology, black tuner), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temp.,), OSD (OSD H. position, OSD V. position, OSD time, OSD background, DDC/CI control, display information), language, miscellaneous (sharpness, video mode adjust, opening logo, power LED, Mac address, USB charge, USB C speed), KVM (HDMI1, HDMI2, DisplayPort, USB C), input select, audio settings (volume, mute audio), recall |
| Weight | 9.7 kg |
| Width | 807 mm |
| Depth | 245.5 mm |
| Control panel | Joystick: Power/Menu (Centre), Forward/Signal Select, Backward, Left/i-Style colour/ECO/BlueLight Reducer, Right/Volume |
| Compliance certificates | CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details | |
| Native refresh rate | 60 Hz |
