Description

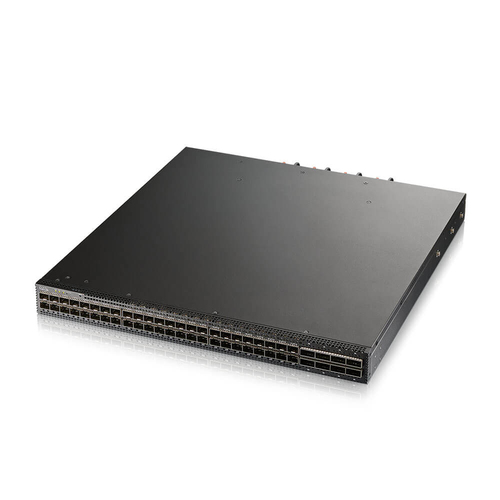

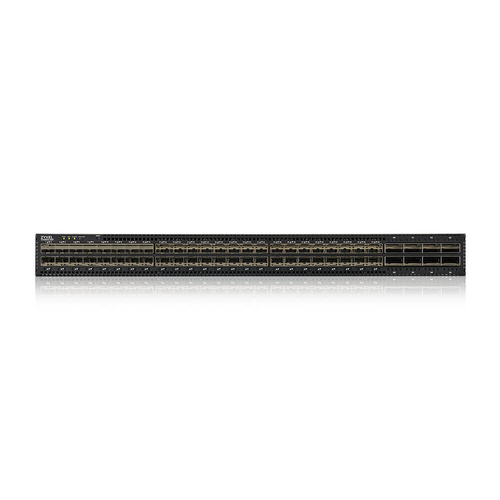

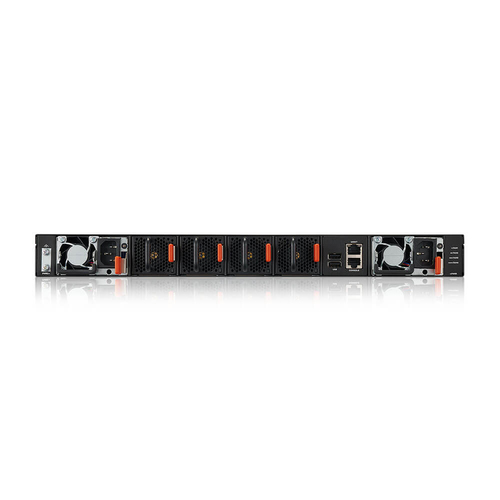

Zyxel CX4800-56F, Managed, L3, Rack mounting, 1U
Future Proof Aggregation & Core Switch
The CX4800-56F supports a full suite of Layer 2 features, including VLAN, ACL, port aggregation, and 802.1X, to enhance security by preventing unauthorized access to cloud resources and AI workloads, optimize bandwidth for high-speed GPU data transfers, and enable dynamic, isolated workload environments in large-scale AI and cloud deployments.
Nebula, The Intelligent Cloud Management
Nebula offers comprehensive monitoring and reporting capabilities, including real-time notifications for critical events via email or the mobile app. With Nebula, you can enjoy a streamlined experience for network installation and management without the need for additional costs for software or hardware controllers.
Dedicated Networked AV Mode
The CX4800-56F features a custom-designed networked AV mode for standalone operation. It supports 10G Ethernet with pixel-perfect 4K60 video streaming in real-time, making it ideal for applications ranging from live events to XR and medical imaging. Leveraging AI intelligence, the switch simplifies the setup process by automatically configuring all necessary parameters, enabling a professional AVoIP deployment within minutes.
Specifications
| Brand | ZYXEL |
|---|---|
| Manufacturer part no. | CX4800-56F-ZZ0102F |
| Our part no. | CN88416 |
| Category | Networking › Switches |
| Weight | 0 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| USB Type-A ports quantity | 2 |
| Number of management ports | 1 pc(s) |
| Console port | RJ-45 |
| QSFP28 ports quantity | 8 |
| SFP28 ports quantity | 48 |
| Power connector | DC-in jack |
| Network | |
| 10G support | Yes |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 4000 Gbit/s |
| MAC address table | 30000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 32 MB |
| Security | |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | SSH-2, SSL/TLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Performance | |
| Memory type | RAM / Flash |
| Internal memory | 8000 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 5900181.1 h |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| Number of power supply units | 2 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 1122 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 489 mm |
| Height | 45 mm |
| Weight | 8.62 kg |
| Packaging content | |
| Cables included | AC |
| Rack mount kit | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 595 mm |
| Package depth | 706 mm |
| Package height | 206 mm |
| Logistics data | |
| Country of origin | Taiwan |
