Description

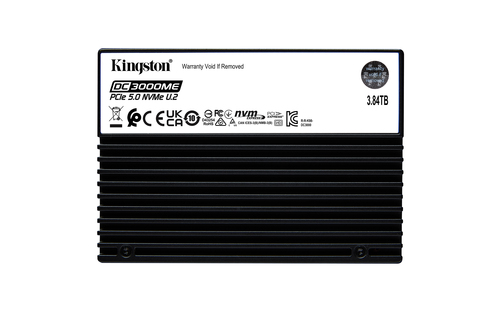

Kingston Technology 3.84TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD, 3.84 TB, U.2, 14000 MB/s

PCIe 5.0 NVMe U.2 for Server Applications Kingston’s DC3000ME U.2 data center SSD features a high-speed PCIe 5.0 NVMe interface and utilizes 3D eTLC NAND, making it well suited for a wide range of server applications such as AI, HPC, OLTP, databases, cloud infrastructure and edge computing. DC3000ME includes on-board power loss protection to safeguard data in the event of sudden power loss and AES 256-bit encryption for ultimate data security. DC3000ME utilizes the latest high-speed PCIe 5.0 interface and is backward-compatible with PCIe 4.0 servers and backplanes. Like all of Kingston’s data center SSDs, DC3000ME is designed to deliver I/O consistency and low latency as the key design criteria that system integrators, hyperscale data centers and cloud service providers can depend on. DC3000ME is offered in 3.84TB, 7.68TB, 15.36TB and 30.72TB* capacities and is backed by Kingston's legendary technical support and a 5-year limited warranty.

Applications and workloads DC3000ME is ideal for running a wide range of server applications and workloads including: - AI - HPC - Cloud services - Edge computing - Software defined storage - RAID - General server use

Enterprise PCIe 5.0 performance Delivers I/O consistency and low latency with sustained speeds of up to 14,000MB/s read and 2,800,000 read IOPS**.

Optimal storage and efficiency High capacity options available offering an exceptional balance of consistent I/O delivery and ultra-high performance. Optimized to handle a wide range of server workloads efficiently.

On-board Power Loss Protection (PLP) Enterprise-class protection to reduce possibility of data loss or corruption on ungraceful power fails including NVMe-MI 1.2b out-of-band management, end-to-end data protection, TCG Opal 2.0.

AES 256-bit encryption Secure sensitive data with AES 256-bit hardware-based encryption and TCG Opal 2.0.

Specifications

BrandKINGSTON
Manufacturer part no.SEDC3000ME/3T8
Our part no.CN94932
EAN0740617347876
CategoryHard Drives & SSDs › SSDs
Weight0.1 kg
Features
Security algorithms256-bit AES, TCG Opal 2.0
SSD capacity3.84 TB
SSD form factorU.2
InterfacePCI Express 5.0
NVMeYes
Memory type3D eTLC
Component forServer
Hardware encryptionYes
Read speed14000 MB/s
Write speed5800 MB/s
Random read (4KB)2700000 IOPS
Random write (4KB)300000 IOPS
Read latency70 µs
Write latency10 µs
Power loss protectionYes
Mean time between failures (MTBF)2000000 h
Drive writes per day (DWPD)1
TBW rating7008
Market segmentServer
Power
Power consumption (read)8.2 W
Power consumption (write)24 W
Power consumption (idle)8 W
Weight & dimensions
Width69.8 mm
Depth100.5 mm
Height14.8 mm
Weight146.2 g
Packaging data
Package width129.5 mm
Package depth16.8 mm
Package height184.2 mm
Package weight180.44 g
Operational conditions
Operating temperature (T-T)0 - 70 °C
Non-operating vibration10 G
Logistics data
Master (outer) case width135.9 mm
Master (outer) case length203.2 mm
Master (outer) case height69.8 mm
Master (outer) case gross weight1.13 kg
Products per master (outer) case6 pc(s)
