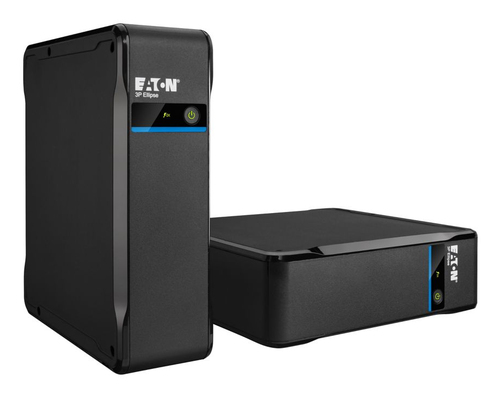

Eaton 3P700I uninterruptible power supply (UPS) Standby (Offline) 0.7 kVA 420 W 4 AC outlet(s)

Description

Eaton 3P700I, Standby (Offline), 0.7 kVA, 420 W, Stepwise, 161 V, 284 V

Specifications

BrandEATON
Manufacturer part no.3P700I
Our part no.CO16869
EAN3553340621291
CategoryPower & UPS › UPS
Weight4.3 kg
Features
UPS topologyStandby (Offline)
Output power capacity0.7 kVA
Output power420 W
WaveformStepwise
Input operation voltage (min)161 V
Input operation voltage (max)284 V
Input frequency46/70 Hz
Output operation voltage (min)161 V
Output operation voltage (max)284 V
Output frequency50/60 Hz
Power consumption (average operating)13 W
Number of input phases1
Number of output phases1
Efficiency97%
Efficiency (ECO mode)97%
Output power factor0.6
Noise level25 dB
Surge protectionYes
Auto shut-offNo
Ports & interfaces
AC outlet typesC3 coupler
AC outlets quantity4 AC outlet(s)
Battery
Battery capacity7 Ah
Battery voltage12 V
Design
Form factorTower
Product colourBlack
Display typeLED
Operational conditions
Operating temperature (T-T)0 - 40 °C
Certificates
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Compliance certificatesCB, CE, RoHS, WEEE
CertificationIEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm
Packaging content
Rack mount kitNo
Weight & dimensions
Width81 mm
Depth235 mm
Height263 mm
Weight3.7 kg
Other features
Input connection typeC14
Nominal input voltage220-240 V
Relative humidity0 - 95%
