Description

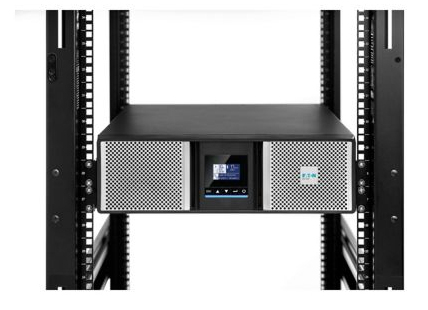

Eaton 9PX 5000i RT3U Netpack G2, Double-conversion (Online), 5 kVA, 5000 W, Sine, 100 V, 276 V
Eaton 9PX Gen2 UPS Netpack, 5000 VA, 5000 W, Input: Hardwired, Outputs: (6) C13, (6) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | 9PX5KIRTNG2 |
| Our part no. | CO16896 |
| EAN | 3553340710551 |
| Category | Power & UPS › UPS |
| Weight | 120.1 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 5 kVA |
| Output power | 5000 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Power consumption (average operating) | 165 W |
| Heat dissipation | 563 BTU/h |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 96.7% |
| Efficiency (ECO mode) | 99% |
| Input power factor | 0.99 |
| Noise level | 40 dB |
| Ports & interfaces | |

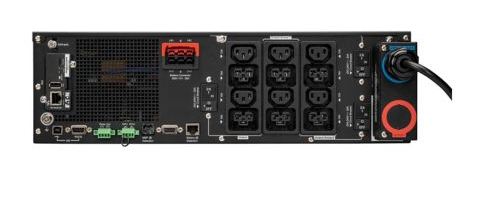

| AC outlet types | C13 coupler, Hardwire, C39 coupler |
| USB port | Yes |
| RS-232 ports | 1 |
| Network card slot | Yes |
| Battery | |

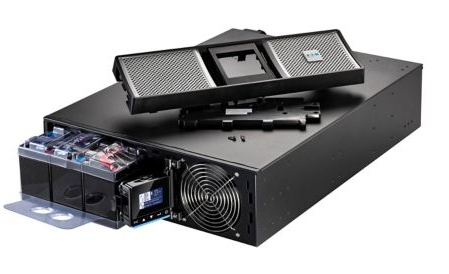

| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 5 Ah |
| Battery voltage | 12 V |
| Typical backup time at half load | 9.4 min |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 3U |
| Cable length | 1.8 m |
| Product colour | Black, Silver |
| Display type | LCD |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | CB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 |
| Packaging content | |
| Cables included | USB cable |
| Quick installation guide | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 684 mm |
| Height | 130 mm |
| Weight | 43.1 kg |
