Description

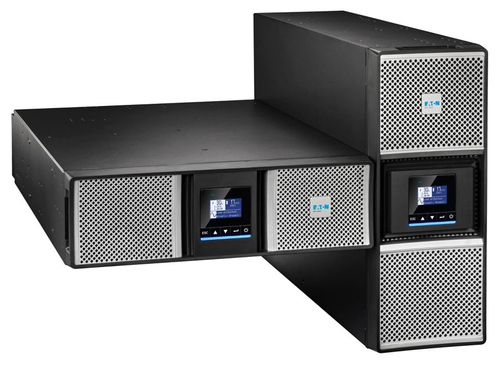

Eaton 9PX6KIRTNBPG2, Double-conversion (Online), 6 kVA, 6000 W, Pure sine, 176 V, 276 V
Eaton 9PX Gen2 UPS HotSwap Netpack, 6000 VA, 6000 W, Input: Hardwired, Outputs: (2) C13, (3) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included, Maintenance bypass included
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | 9PX6KIRTNBPG2 |
| Our part no. | CO16907 |
| EAN | 3553340710582 |
| Category | Power & UPS › UPS |
| Weight | 72 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6 kVA |
| Output power | 6000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Efficiency | 0.965% |
| Power factor | 0.99 |
| Noise level | 40 dB |
| Ports & interfaces | |
| AC outlet types | C13 coupler, Terminal |
| Power plug | Terminal |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 5 Ah |
| Battery voltage | 12 V |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 3U |
| Product colour | Black, Silver |
| Control type | Buttons |
| Display type | LCD |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Compliance certificates | CE, UKCA, cULus |
| Certification | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR certified, CE, cULus, UKCA, Cm, Ukr, RCM |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | USB cable |
| Management card included | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 684 mm |
| Height | 130 mm |
| Weight | 45.1 kg |
| Packaging data | |
| Bundled software | Eaton Brlightlayer Software suite |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
