Description

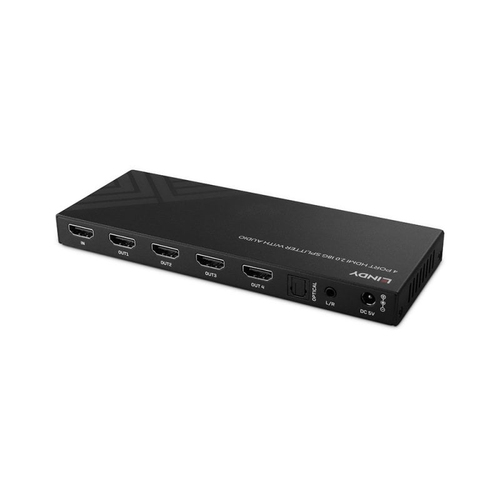

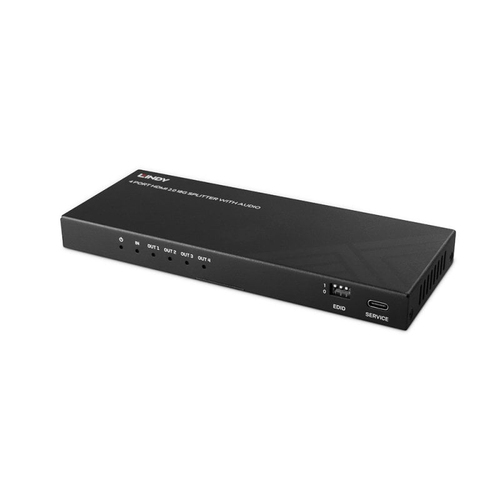

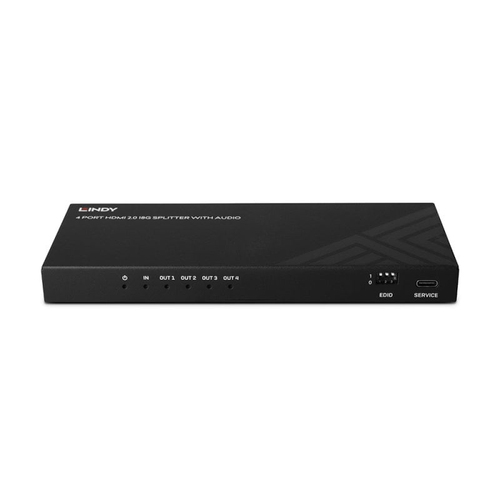

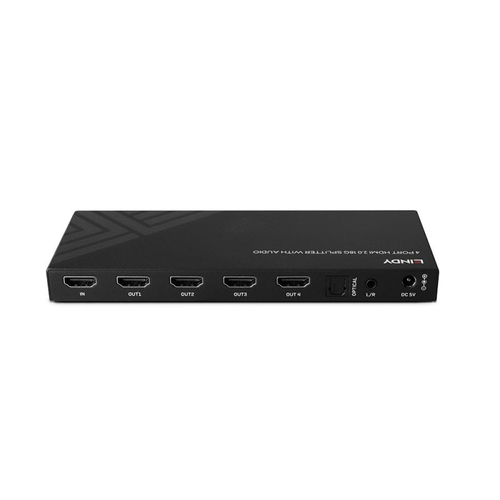

Lindy 4 Port HDMI 8K60 Splitter with Audio, HDMI, 4x HDMI, 3.5 mm, 7680 x 4320 pixels, Black, Metal
The Lindy 4 Port HDMI® 8K60 Splitter with Audio is a multi-function solution for distributing high quality HDMI® signals across 2 displays simultaneously from one source device, while extracting digital or analogue audio separately.
With support for resolutions up to 8K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching dual display digital signage in retail scenarios, displaying live video across two screens at event venues or distributing engaging multiscreen educational presentations at tradeshows.
The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI® to connect non-HDMI® amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.
The splitters also features an integrated switch to downscale the input signal to 4K or Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 38535 |
| Our part no. | CO25775 |
| EAN | 4002888385350 |
| Category | Monitors & Displays › Screen Filters & Covers |
| Weight | 0.6 kg |
| Ports & interfaces | |
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 2.1 |
| Video ports quantity | 4 |
| Digital audio optical out | 1 |
| Headphone out | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 7680 x 4320 pixels |
| HD type | 8K Ultra HD |
| Colour depth | 8 bit |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.3 |
| Data transfer rate | 48 Gbit/s |
| HDCP | Yes |
| Easy to install | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS, REACH & California Proposition 65 |
| Power | |
| AC input voltage | 5 V |
| Input current | 2 A |
| Weight & dimensions | |
| Width | 176 mm |
| Depth | 17 mm |
| Height | 68 mm |
| Weight | 375 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 240 mm |
| Package depth | 70 mm |
| Package height | 130 mm |
| Package weight | 510 g |
| Package type | Box |
| Packaging content | |
| Manual | Yes |
| Cables included | Power |
| AC adapter included | Yes |
| Included power plug types | AU, EU, UK |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Technical details | |
| Connector 1 | 4 x HDMI Type A |
| Connector 2 | HDMI Type A |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
