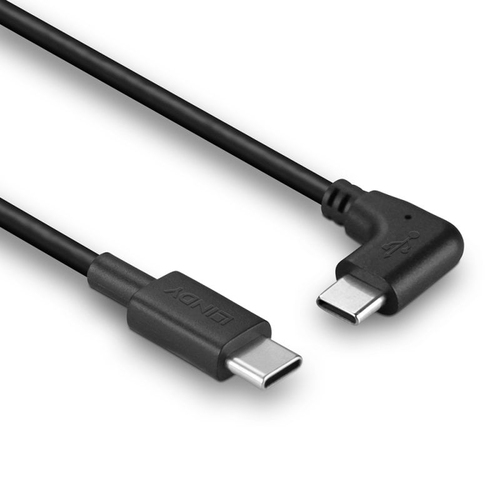

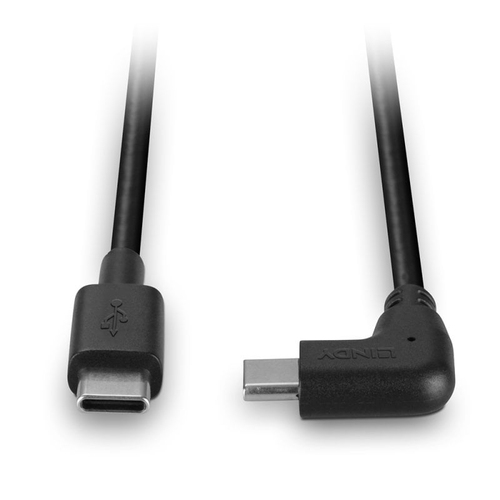

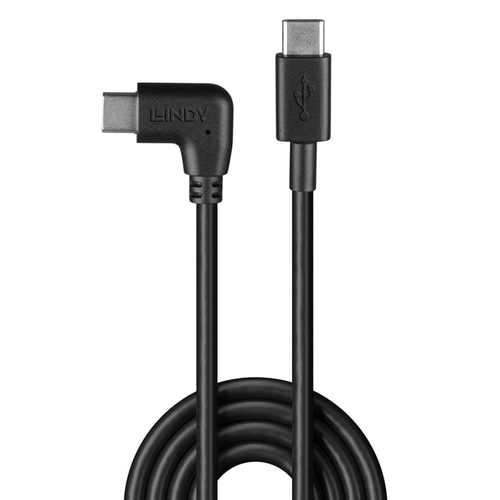

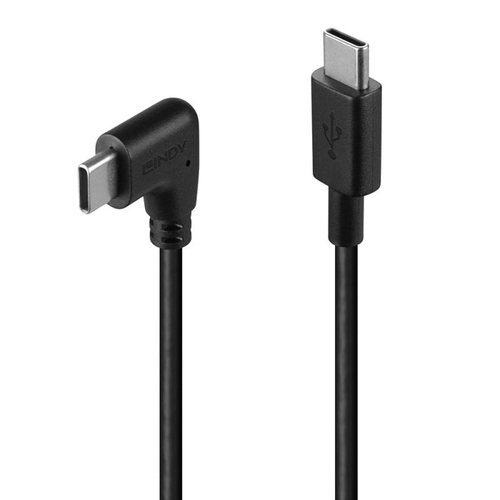

Lindy 1m USB 2.0 Straight USB-C to Right-Angled USB-C Cable

Description

Lindy 1m USB 2.0 Straight USB-C to Right-Angled USB-C Cable, 1 m, USB C, USB C, USB 2.0, Black

LINDY USB 2.0 Type C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

USB 2.0 Type C, 90° Right Angle cables are available in the following lengths: 0.5m, 1m.

Specifications

BrandLINDY
Manufacturer part no.32005
Our part no.CO25790
EAN4002888320054
CategoryCables & Adapters › USB Cables & Adapters
Weight0 kg
Features
USB versionUSB 2.0
Connector 1USB C
Connector 2USB C
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorAngled
AWG wire size22/28
Connector materialGold
Connector contacts platingNickel
Cable jacket materialNylon/Polyvinyl Chloride (PVC)
Conductor materialCopper
Connector shieldingYes
Connector shield materialAluminium
Cable typeRound cable
USB Power Delivery up to60 W
Product colourBlack
Nominal attenuation0.5Mhz- 400Mhz < 5.8db
Weight & dimensions
Cable length1 m
Cable diameter3.8 mm
Bend radius (min)5 cm
Connector 1 dimensions (WxDxH)6.5 x 23.7 x 10.9 mm
Connector 2 dimensions (WxDxH)7 x 24 x 6.8 mm
Packaging data
Package typePolybag
Packaging content
Quantity per pack1 pc(s)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)0 - 70 °C
Certificates
Compliance certificatesREACH, RoHS
CertificationRoHS, REACH, California Proposition 65
Logistics data
Warranty period10 year(s)
