Description

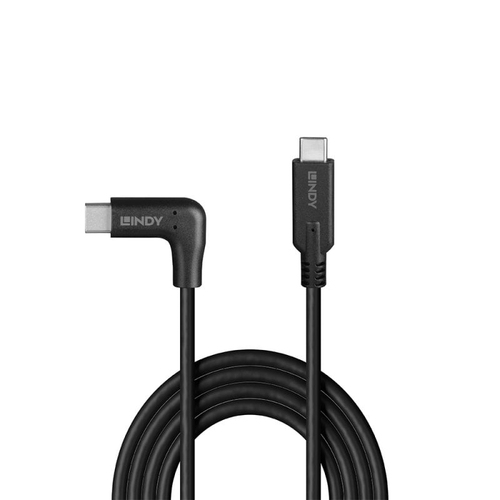

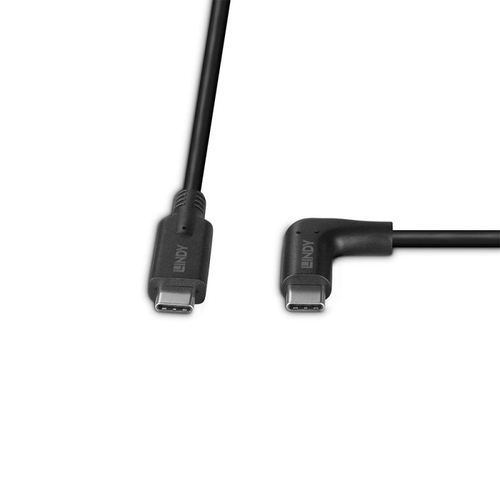

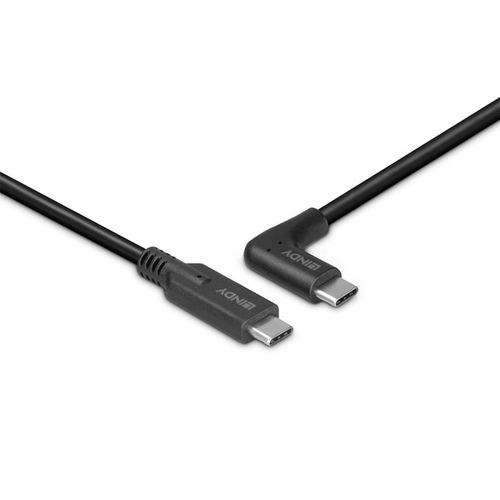

Lindy 1m USB 3.2 Type C Cable, 90° Right Angle, 10Gbps, 1 m, USB C, USB C, USB 3.2 Gen 2 (3.1 Gen 2), 10 Gbit/s, Black
LINDY USB 3.2 Type C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
USB cables with angled plugs protect the USB ports of your devices by reducing pressure and preventing cable breakage, making them ideal for confined spaces and hard-to-reach ports.
Data transfer speeds up to 10Gbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
USB 3.2 Type C, 90° Right Angle cables are available in the following lengths: 0.5m, 1m, 1.5m.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 32018 |
| Our part no. | CO25802 |
| EAN | 4002888320184 |
| Category | Cables & Adapters › USB Cables & Adapters |
| Weight | 0 kg |
| Features | |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Angled |
| AWG wire size | 22/28 |
| Connector material | Gold |
| Connector contacts plating | Nickel |
| Cable jacket material | Nylon/Polyvinyl Chloride (PVC) |
| Conductor material | Copper |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Maximum data transfer rate | 10 Gbit/s |
| Cable type | Round cable |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 2.0 |
| USB Power Delivery up to | 60 W |
| Product colour | Black |
| Nominal attenuation | 0.5Mhz- 400Mhz < 5.8db |
| Weight & dimensions | |
| Cable length | 1 m |
| Cable diameter | 5 mm |
| Bend radius (min) | 5 cm |
| Connector 1 dimensions (WxDxH) | 6.4 x 38 x 12.3 mm |
| Connector 2 dimensions (WxDxH) | 11.1 x 25.8 x 24.2 mm |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Certification | RoHS, REACH, California Proposition 65 |
| Logistics data | |
| Warranty period | 10 year(s) |
