Description
Viewsonic VB-STND-104, 75 kg, 139.7 cm (55"), 2.18 m (86"), 800 x 600 mm

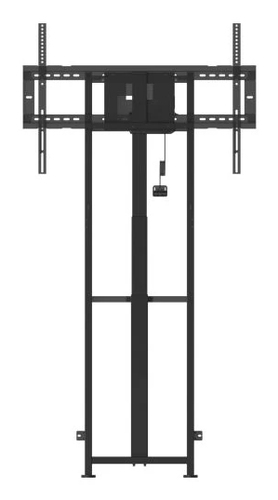

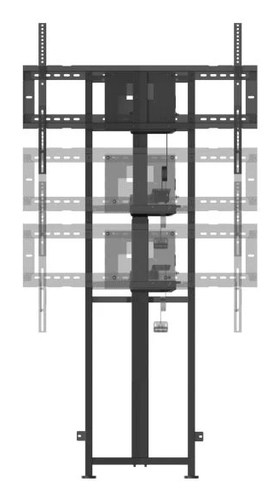

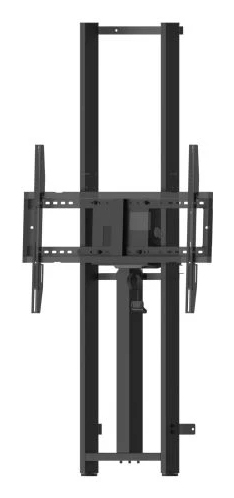

The ViewSonic® VB-STND-104 is a motorised wall mount stand that enables smooth and quiet height adjustment with up to 650mm of vertical travel. Designed to support ViewSonic 55”, 65”, 75”, and 86” ViewBoard® interactive flat panel displays—or any display up to 75 kg—it offers a simple and practical solution for fixed installations. A user-friendly control pad allows one-touch adjustment for improved accessibility and convenience. *With the optional VE-MT-001 mobile kit, the VB-STND-104 can be converted into a mobile trolley for added flexibility.
Specifications
| Brand | VIEWSONIC |
|---|---|
| Manufacturer part no. | VB-STND-104 |
| Our part no. | CO27101 |
| EAN | 0766907033496 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 31.2 kg |
| Mounting | |
| Maximum weight capacity | 75 kg |
| Minimum screen size | 139.7 cm (55") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 75 kg |
| Maximum screen size | 2.18 m (86") |
| Mounting type | Wall |
| Maximum VESA mount | 800 x 600 mm |
| Panel mounting interface | 800 x 600 mm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Electric |
| Lifting speed | 22 mm/sec |
| Height adjustment | 65 cm |
| Design | |
| Product colour | Black |
| Housing material | SPCC |
| Power | |
| Motorized | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 150 W |
| Weight & dimensions | |
| Width | 960 mm |
| Depth | 172 mm |
| Height | 1667 mm |
| Weight | 27.3 kg |
| Packaging data | |
| Package width | 1166 mm |
| Package depth | 711 mm |
| Package height | 172 mm |
| Package weight | 31.3 kg |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Cables included | AC |
| Packaging content | Power Cord Wall Mount Mounting Bracket Fixed Frame Bracket Vertical Beam Top Beam Locking Wall Bracket Screw Kit Control Pad User Guide |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Compliance certificates | CB, CE, REACH, RoHS, WEEE |
| Features | |
| Brand compatibility | Viewsonic |
| Logistics data | |
| Harmonized System (HS) code | 9403208000 |
| Pallet gross length | 72.3 cm |
| Pallet gross width | 117.6 cm |
| Pallet gross height | 2.36 m |
| Products per master (outer) case | 1 pc(s) |
