Description

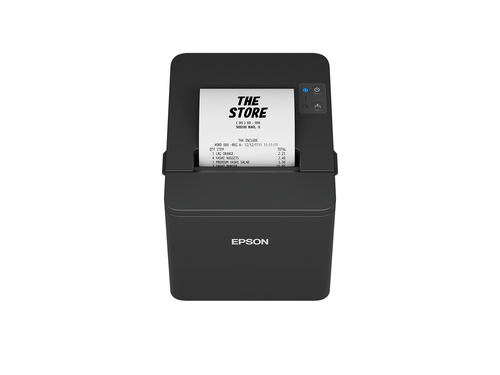

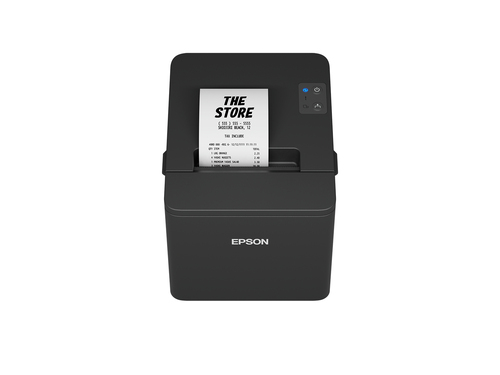

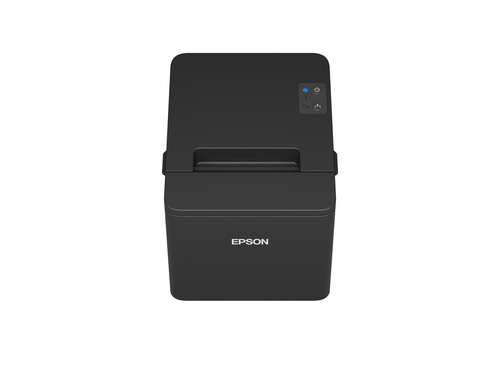

Epson TM-T20IV (101):USB+SERIAL, PS,BLK,, Thermal, POS printer, 203 x 203 DPI, 250 mm/sec, 1.25 x 3 mm, 22.6 cpi

POS receipt printer The combination of its fast print speeds, high reliability and economical operation, make this printer a must-have for small retail and speciality stores, hospitality venues and grocery stores.

Affordable This easy-to-use model is our entry-level POS receipt printer and has an 80mm printing width. Its Automatic Paper Reduction feature reduces top and bottom margins, line feed width and barcode height, allowing for flexible receipt printing. This monitors and controls the amount of paper used. Paper costs are minimised by printing the top logo of the next receipt before cutting, so the top margin is further reduced by 12mm.

Reliable With the mean time between failures (MTBF) of 360,000 hours and a mechanism life of 15 million lines, you can rely on the TM-T20IV in high-volume printing environments.

Flexible The TM-T20IV comes with a built-in USB + Serial interface, making the model a long-term investment as it is possible to switch connectivity at any time.

Fast Its print speed of 250mm/sec can save you time and its competitive price and running costs can save you money; ideal for when you need to beat queues quickly.

Specifications

BrandEPSON
Manufacturer part no.C31CL47101A0
Our part no.CO27242
EAN8715946742403
CategoryLabel & Receipt Printers › Receipt Printers
Weight2.6 kg
Printing
ColourNo
Maximum resolution203 x 203 DPI
Print speed250 mm/sec
Character size1.25 x 3 mm
Character density22.6 cpi
Printing charactersGraphic
Print technologyThermal
TypePOS printer
Paper handling
Printing media thickness53 - 75 µm
Maximum roll diameter8.3 cm
Supported paper width80 mm
Ports & interfaces
USB portYes
USB 2.0 ports quantity1
USB connectorUSB Type-B
Serial interfaceYes
Serial interface typeRS-232
Connectivity technologyWired
Optional connectivityEthernet, Wireless LAN
Network
Ethernet LANNo
Wi-FiNo
Features
Built-in barcodesCODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Mean time between failures (MTBF)360000 h
CutterYes
Autocutter durability2 million cuts
Print head life150 km
Country of originPhilippines
Wall mountableYes
Receive buffer4 KB
Built-in sensors detailsPaper End Sensor, Paper Near End Sensor
Design
Product colourBlack
Power
Power source typeDC
Power consumption (printing)27.2 W
AC input voltage100 - 230 V
AC input frequency50/60 Hz
DC output voltage24 V
Power consumption (standby)0.96 W
Operational conditions
Operating temperature (T-T)5 - 45 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
System requirements
Windows operating systems supportedYes
Mobile operating systems supportedAndroid, iOS
Weight & dimensions
Width140 mm
Depth199 mm
Height146 mm
Weight1.7 kg
Packaging data
Cables includedAC
Quantity per pack1 pc(s)
Package width195 mm
Package depth235 mm
Package height280 mm
Package weight2.65 kg
Packaging content
AC adapter includedYes
Logistics data
Products per pallet112 pc(s)
Products per pallet layer16 pc(s)
Pallet gross width80 cm
Pallet gross length120 cm
Pallet gross height2.11 m
Products per pallet (UK)168 pc(s)
Products per pallet layer (UK)24 pc(s)
Pallet length (UK)120 cm
Pallet height (UK)2.11 m
Technical details
Box contentsAC adapter, C1, Main unit, Paper roll spacer, Cable cover, UK AC cable
Compliance certificatesFederal Communications Commission (FCC), ICES
Safety warningUL62368-1, CAN/CSA C22.2 No.62368-1
Other features
Mean cycles between failures (MCBF)60000000
