Description

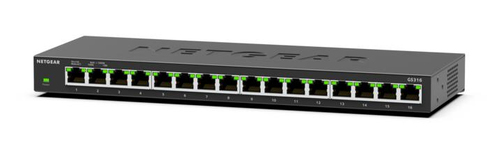

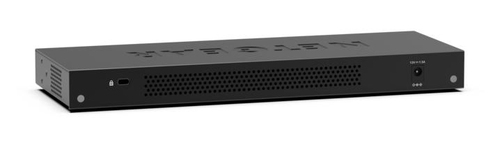

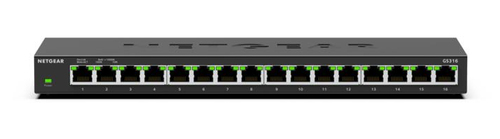

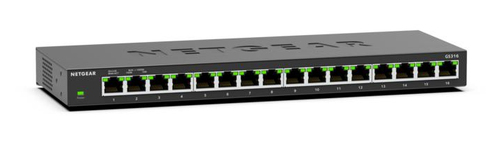

NETGEAR GS316, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Wall mountable
NETGEAR Unmanaged Essentials Switches offer an array of features that make them the ideal choice for providing easy, reliable, and affordable network connectivity for home and small offices. With the convenience of plug-and-play operation, these unmanaged switches provide seamless connectivity to multiple devices without the need for complex configuration. The switches are designed to be energyefficient, ensuring power savings while maintaining optimal network performance. The NETGEAR Unmanaged Essentials Switches are available in 5, 8, 16, 24, or 48 port models to meet the demands of a growing network. Instead of stacking multiple lower port models and your network grows, the higher port models ensure maximum scalability by reducing switch congestion. With their plug-and-play operation, energy-efficient technology, non-blocking switching architecture, and durable metal case, these switches offer a cost-effective and dependable solution for expanding network connectivity for home and small offices.
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | GS316-300EUS |
| Our part no. | CO46770 |
| EAN | 0606449164251 |
| Category | Networking › Unmanaged Switches |
| Weight | 1.3 kg |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 3.2 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
| On/off switch | No |
| Performance | |
| Buffer size | 512 KB |
| Plug and Play | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 4160957 h |
| Power | |
| Power source | DC |
| Number of power supply units | 1 |
| DC input voltage | 12 V |
| Input current | 1.5 A |
| Power consumption (max) | 8.1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 27.7 BTU/h |
| Weight & dimensions | |
| Width | 286 mm |
| Depth | 102 mm |
| Height | 27 mm |
| Weight | 890 g |
