Description

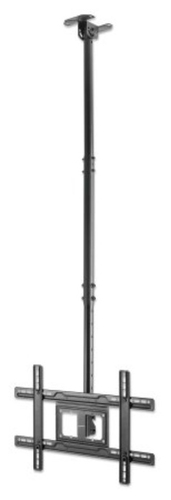

Manhattan Ceiling Mount for TV & Monitors, For screens: 37" to 65", Adjustable height: 70-157 cm, VESA compatibility: all between 200x200 to 600x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 50kg, LFD, Bracket, 200 x 200 mm, 600 x 400 mm, -25 - 5°, -30 - 30°, Steel, Black

Ceiling TV Mount - Telescopic TV mount bracket with tilt for sloped and flat ceilings to save wall and floor space Upgrade viewing perspectives when wall and floor space is limited or low-level installations are impractical. This Manhattan Ceiling TV Mount holds a 37"" to 80"" LCD, LED or plasma display up to 50 kg (110 lbs.). Its powder-coated, heavy-duty steel construction provides a secure and confident overhead installation.

Keep your guests and co-workers informed and entertained Designed for both residential and business applications, this mount is ideal for conference rooms, lobbies, entrances, meeting spaces, classrooms, hospitality, digital signage, video conferencing, surveillance and more.

Viewable from anywhere in the room The full-motion mount lets you rotate your display +/-30° around the pole without using tools and can be tilted from +5 to -25° toward your audience for optimum visibility. Such great options keep images, contrast and colors clear, sharp and defined with no glare. Plus, the overhead installation means there's less likelihood that someone or something will block the view.

Adjustable height With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling between 707 to 1577 mm (28 to 62 in.).

Suits flat and sloped ceilings This Manhattan TV mount accommodates both ceiling types: You can adjust the ceiling plate +/- 60° to work with sloped and level (flat) surfaces.

Clean-looking, clutter-free cable management Internal cable management keeps your cords concealed and organized to give a professional look to the installation.

Specifications

BrandMANHATTAN
Manufacturer part no.462051
Our part no.CO52039
EAN0766623462051
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight6.2 kg
Mounting
Maximum weight capacity50 kg
Minimum screen size94 cm (37")
Number of displays supported1
Maximum weight capacity (per display)50 kg
Maximum screen size2.03 m (80")
Minimum VESA mount200 x 200 mm
Maximum VESA mount600 x 400 mm
Panel mounting interface200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400
Mounting typeCeiling
Ergonomics
Height adjustmentYes
Height adjustment range707 - 1577 mm
Tilt adjustmentYes
Tilt angle range-25 - 5°
SwivellingYes
Swivel angle range-30 - 30°
WheelsNo
Cable managementYes
Easy to adjustYes
Design
Product colourBlack
Housing materialSteel
Technical details
Sustainability complianceYes
Compliance certificatesRoHS
Packaging content
ManualYes
Weight & dimensions
Width650 mm
Depth (max)179.2 cm
Height185 mm
Weight5.58 kg
Packaging data
Package weight6.28 kg
