Description

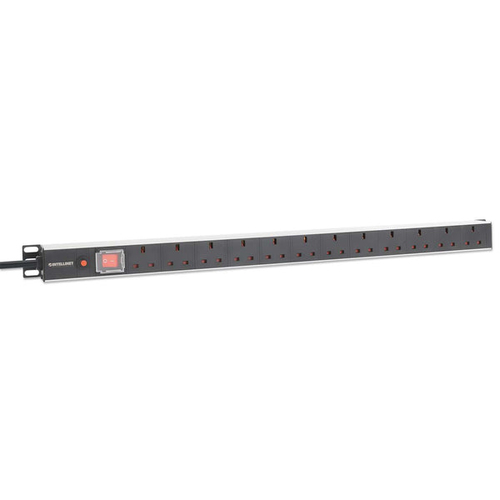

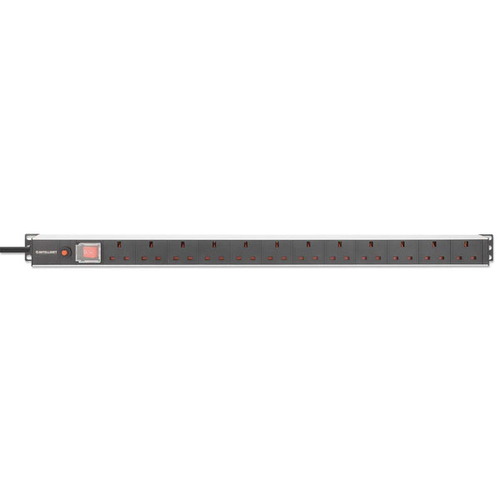

Intellinet 19" 1U PDU 12-way UK, Vertical type, With switch and overload protection, Rackmount, Power Distribution Unit, UK 3-pin outlets, 1.8m power cord, output, 1U, Single-phase, Horizontal, Aluminium, Black, White, 12 AC outlet(s)
Rack mount 12-way UK PDU power strip with overload protection - power up to 12 devices in your network Plug your networking, telecom, surveillance, AV or other electronics into this 12-outlet PDU from Intellinet Network Solutions. It is compatible with standard electrical equipment and features 12 British BS1363A outlets in a durable black aluminum housing. This PDU mounts vertically in 19-inch racks. For greater safety, integrated overload protection automatically cuts power to all outlets to prevent equipment damage should an overload occur. The illuminated on/off switch provides one-touch control over all connected devices and has a protective hinged cover to prevent accidental shutdown.
Specifications
| Brand | IC INTRACOM |
|---|---|
| Manufacturer part no. | 715614 |
| Our part no. | CO77590 |
| EAN | 0766623715614 |
| Category | Power & UPS › PDUs |
| Weight | 3.1 kg |
| Design | |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Aluminium |
| Product colour | Black, White |
| On/off switch | Yes |
| Ports & interfaces | |
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | BS 1363 |
| AC outlet types | BS 1363 |
| Features | |
| LED indicators | Yes |
| Cable length | 2 m |
| Power | |
| Nominal input voltage | 220 - 250 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 13 A |
| Power protection features | Overload |
| Maximum power | 3250 W |
| Certificates | |
| Compliance certificates | UKCA, CE, RoHS, REACH |
| Weight & dimensions | |
| Width | 768 mm |
| Depth | 62 mm |
| Height | 47 mm |
| Weight | 1.14 kg |
| Size (imperial) | 48.3 cm (19") |
| Packaging data | |
| Package weight | 1.27 kg |
| Package width | 820 mm |
| Package depth | 97 mm |
| Package height | 62 mm |
