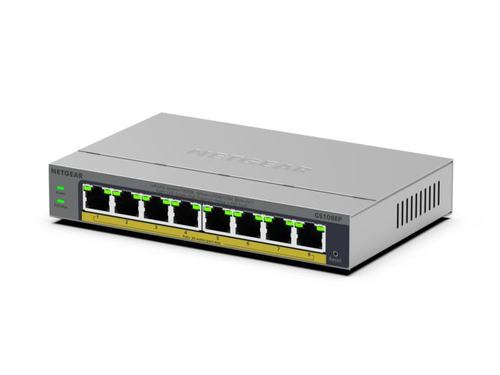

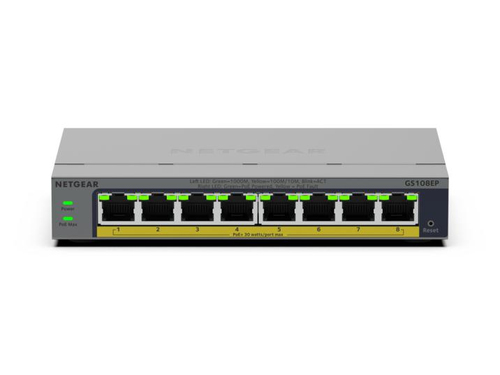

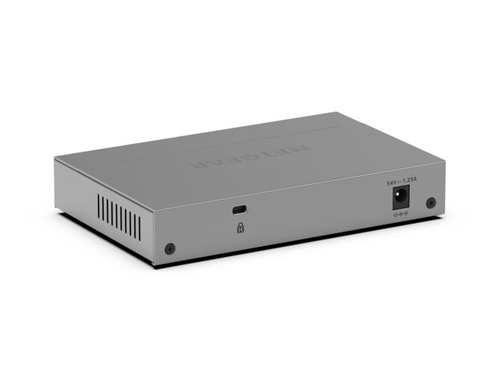

NETGEAR GS108EP, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), 1U

More Capabilities beyond Plug-and-play Connectivity

Today's growing businesses are both placing more demands on and relying more on their network. Companies are putting more applications and demands on their Ethernet Infrastructure. Using VoIP phones and IP cameras require more than simple plug-and-play connectivity. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR's new ProSafe Plus Switches meet this growing need by providing easy to use visibility and limited confi guration capabilities. To provide more insight into the network behavior, ProSafe Plus Switches offer traffic monitoring for users to observe traffic behavior. Additionally, if there are connectivity issues, these switches offer a cable diagnostic test capability that can identify and even locate problems in the cables. To optimize traffic through the switches, ProSafe Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, as a means of improving security or managing collision domains, ProSafe Smart Switches offer VLAN technology. ProSafe Plus Switches offering these monitoring and confi guration capabilities at a slight cost premium over un anaged switches, delivering great value to the end user.

Additionally, furthering NETGEAR's support of the environment, ProSafe Plus Switches have power-saving Green Ethernet technology. The GS108E switch comes in a sturdy metal case with a fan-less design for silent operation.

NETGEAR Green

- Up to 60% lower power consumption than the non-Green version; - Auto power-down and cable-length detection for energy savings; - Packaging manufactured with at least 80% recycled materials.

Specifications

BrandNETGEAR
Manufacturer part no.GS108EP-100EUS
Our part no.CO84546
EAN0606449174632
CategoryNetworking › Unmanaged Switches
Weight1 kg
Management features
Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3az
Port mirroringYes
Port trunkingYes
Flow control supportYes
Rate limitingYes
VLAN supportYes
Virtual LAN featuresPort-based VLAN
Number of VLANs64
Data transmission
Supported data transfer rates10/100/1000 Mbps
MAC address table4000 entries
Jumbo frames supportYes
Jumbo frames9216
Packet buffer memory1.5 MB
Security
DHCP featuresDHCP client
IGMP snoopingYes
Password protectionYes
Queue scheduling algorithmsPriority queuing (PQ), Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Multicast features
Number of multicast groups filtered128
Design
Form factor1U
Product colourGrey
Housing materialMetal
LED indicatorsActivity, Link, PoE, Power, Speed, System
Performance
Mean time between failures (MTBF)859126 h
Power
Power sourceAC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget62 W
Other features
Connectivity technologyWired
Bandwidth16 Gbit/s
Power requirements100 - 240 VAC
Networking featuresEthernet, Fast Ethernet, Gigabit Ethernet
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Weight & dimensions
Weight522 g
Certificates
Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), KC, VCCI
CertificationCE, EN, FCC, VCCI
