Description

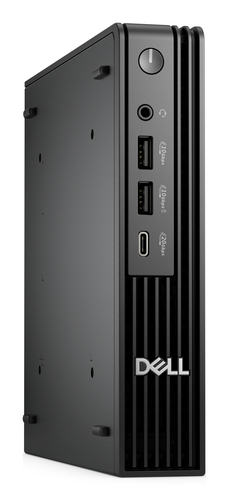

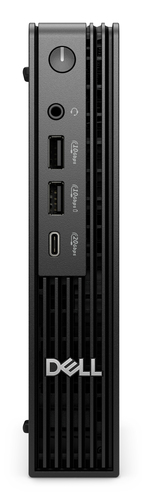

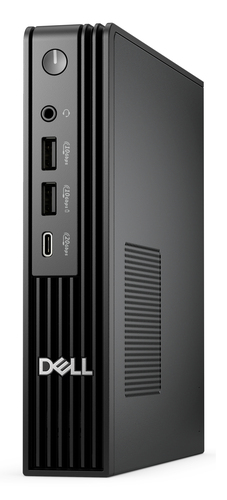

DELL Pro QBM1250 Plus, Intel Core Ultra 5, 235, 16 GB, 512 GB, Windows 11 Pro, 64-bit
Big power. Small footprint. Ultracompact desktop with superior performance, speeds and connectivity powered by Intel® Core™ Ultra (Series 2) desktop processors, up to U9.
Specifications
| Brand | DELL EMC |
|---|---|
| Manufacturer part no. | D6GXR |
| Our part no. | CO90380 |
| EAN | 5397184936375 |
| Category | Computers & Servers › Desktop PCs |
| Weight | 3.2 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 235 |
| Processor cores | 14 |
| Processor threads | 14 |
| Processor boost frequency | 5 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Performance-core base frequency | 3.4 GHz |
| Efficient-core base frequency | 2.9 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 65 W |
| Maximum turbo power | 121 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 27 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 6 TOPs |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Non-ECC | Yes |
| Memory channels | Single-channel |
| Memory data transfer rate | 5600 MT/s |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD memory type | TLC |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Performance | |
| Market positioning | Business |
| Motherboard chipset | Intel® Q870 |
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel WGI219LM |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Antenna design | Internal |
| Bluetooth | Yes |

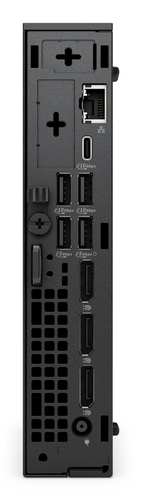

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Number of rear USB ports | 5 |
| Number of front USB ports | 3 |
| Number of front audio ports | 1 |
| Power | |
| Power supply | 180 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 / 60 Hz |
| Design | |
| Chassis type | Micro PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Trial software | Activate Your Microsoft 365 For A 30 Day Trial |
| Display | |
| Display included | No |
| Audio | |
| Audio chip | Realtek ALC3204 |
| Audio system | High Definition Audio |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.26 G |
| Non-operating vibration | 1.37 G |
| Operating shock | 40 G |
| Non-operating shock | 105 G |
| Weight & dimensions | |
| Width | 36 mm |
| Depth | 178 mm |
| Height | 182 mm |
| Weight | 1.43 kg |
| Packaging content | |
| Input device model | Dell Pro Keyboard and Mouse - KM5221W - UK (QWERTY) - Black |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO |
| Doesn't contain | PVC/BFR |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 80.7 |
| Carbon emissions, manufacturing (kg of CO2e) | 45.03 |
| Carbon emissions, logistics (kg of CO2e) | 2.26 |
| Carbon emissions, energy usage (kg of CO2e) | 32.84 |
| Carbon emissions, end-of-life (kg of CO2e) | 0.56 |
| PAIA version | GaBi version 1, 2024 |
