APC EasyPDU, Switched, Zero U, 22 kW, 230V, (18) C13 & (6) C19；IEC309

Description

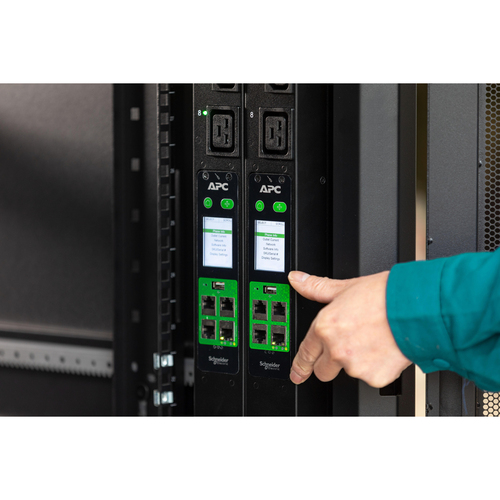

APC EasyPDU, Switched, Zero U, 22 kW, 230V, (18) C13 & (6) C19；IEC309, Switched, 0U, Three-phase, Vertical, Black, 24 AC outlet(s)

It is a high-capacity, switched power distribution unit (PDU) designed for efficient power management in data centers and network environments. It features a vertical mounting design, which saves valuable rack space. The PDU supports a load capacity of 22 kW and operates at 230V with a 32A input current. It includes 18 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. The unit is equipped with an IEC 60309 32A 3P+N+PE input plug and supports 3-phase power distribution. Additionally,it offers remote management capabilities, allowing users to monitor and control individual outlets for optimized power usage. The PDU is built with robust materials, ensuring durability and reliable performance in demanding environments.

Specifications

BrandAPC
Manufacturer part no.EPDU2232S
Our part no.CO91248
EAN0731304761280
CategoryPower & UPS › PDUs
Weight0 kg
Design
PDU typesSwitched
TypeThree-phase
Rack capacity0U
MountingVertical
Product colourBlack
Ports & interfaces
AC outlets quantity24 AC outlet(s)
Power plugC13 coupler
AC outlet typesC13 coupler, C19 coupler
Power
Nominal input voltage400 V
AC input frequency50/60 Hz
Maximum current32 A
Nominal output voltage230 V
Output voltage230 V
Load capacity22080 VA
Number of phases3
Certificates
Compliance certificatesCE, UKCA
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Weight & dimensions
Width56 mm
Depth62 mm
Height1650 mm
Weight7.75 kg
Packaging data
Package weight9.25 kg
Package width170 mm
Package depth1810 mm
Package height1260 mm
Logistics data
Total carbon footprint (kg of CO2e)2155
