Description

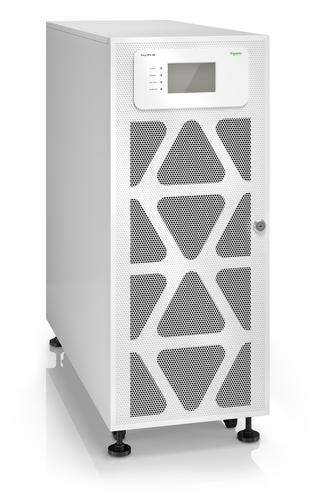

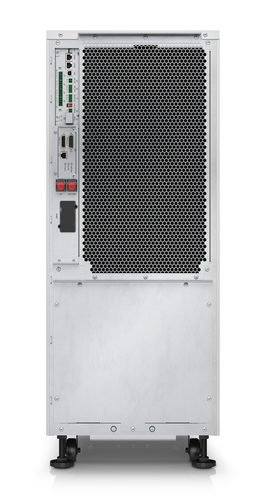

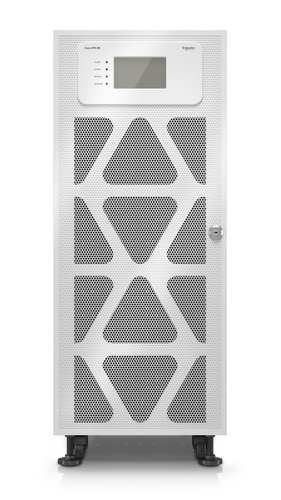

APC Easy UPS 3M 100kVA 400V 3:3 UPS for external batteries, Start-up 5x8, Double-conversion (Online), 100 kVA, 100000 W, Sine, 342 V, 477 V
Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 100 kVA 3-phase UPS. With advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure connected to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5x8 start-up service.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | E3MUPS100KHS |
| Our part no. | CO91444 |
| Category | Power & UPS › UPS |
| Weight | 168 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 100 kVA |
| Output power | 100000 W |
| Waveform | Sine |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 177 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 94.8% |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| Audible alarm(s) | Yes |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1476.3 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Certification | EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4 |
| Weight & dimensions | |
| Width | 360 mm |
| Depth | 850 mm |
| Height | 915 mm |
| Weight | 145 kg |
| Packaging data | |
| Package width | 475 mm |
| Package depth | 965 mm |
| Package height | 1140 mm |
| Package weight | 169 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
