Description
APC Easy UPS 3M 80kVA 400V 3:3 UPS for external batteries, Start-up 5x8, Double-conversion (Online), 80 kVA, 80000 W, Sine, 342 V, 477 V

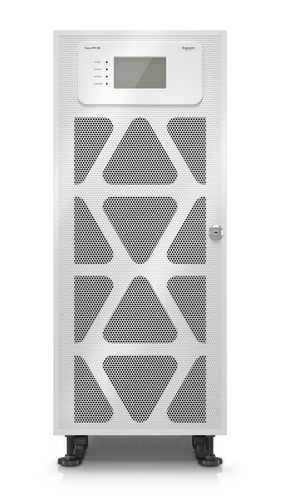

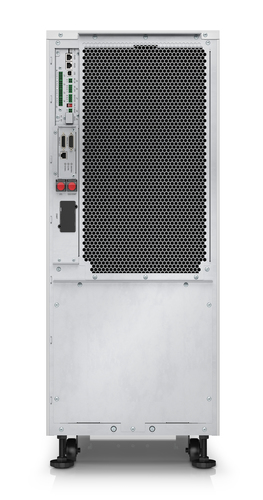

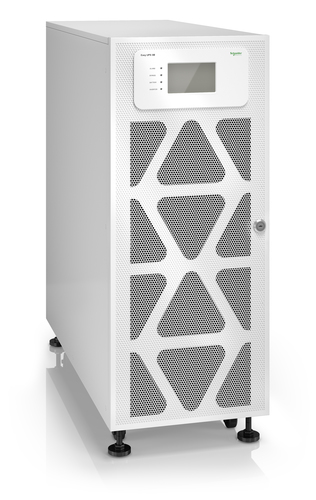

This Easy UPS 3M E3MUPS80KHS is easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 80 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5x8 start-up service.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | E3MUPS80KHS |
| Our part no. | CO91483 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 80 kVA |
| Output power | 80000 W |
| Waveform | Sine |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 146 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 94.9% |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| Audible alarm(s) | Yes |
| Battery | |
| Cold start | Yes |
| Battery weight | 164 kg |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1476.3 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Certification | EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4 |
| Weight & dimensions | |
| Width | 360 mm |
| Depth | 850 mm |
| Height | 915 mm |
| Weight | 140 kg |
| Battery width | 47.5 cm |
| Battery depth | 96.5 cm |
| Battery height | 114 cm |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
