Description
APC EasyPDU, Switched, Zero U, 22 kW, 230V, (30) C13 & (6) C19；IEC309, Switched, 0U, Three-phase, Vertical, Black, 30 AC outlet(s)

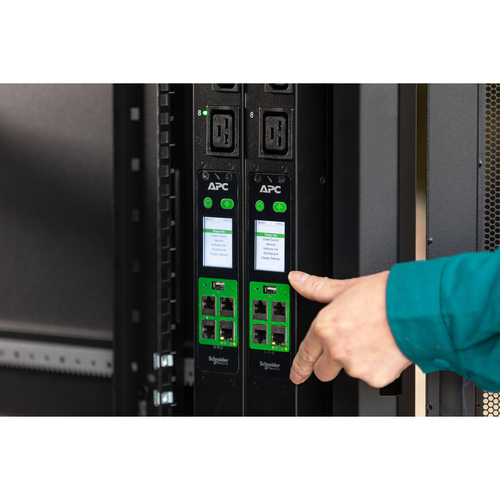

It is a high-capacity, switched power distribution unit (PDU) designed for efficient power management in data centers and network environments. It features a vertical mounting design, which saves valuable rack space. The PDU supports a load capacity of 22 kW and operates at 230V with a 32A input current. It includes 30 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. The unit is equipped with an IEC 60309 32A 3P+N+PE input plug and supports 3-phase power distribution. Additionally, it offers remote management capabilities, allowing users to monitor and control individual outlets for optimized power usage. The PDU is built with robust materials, ensuring durability and reliable performance in demanding environments.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | EPDU2232SX3620 |
| Our part no. | CO91892 |
| EAN | 0731304761297 |
| Category | Power & UPS › PDUs |
| Weight | 9.6 kg |
| Design | |
| PDU types | Switched |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 30 AC outlet(s) |
| Power plug | C13 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Power | |
| Nominal input voltage | 400 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 22080 VA |
| Number of phases | 3 |
| Certificates | |
| Compliance certificates | CE, UKCA |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 62 mm |
| Height | 1800 mm |
| Weight | 8.75 kg |
| Packaging data | |
| Package weight | 10.6 kg |
| Package width | 170 mm |
| Package depth | 1960 mm |
| Package height | 1260 mm |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 2245 |
