Description

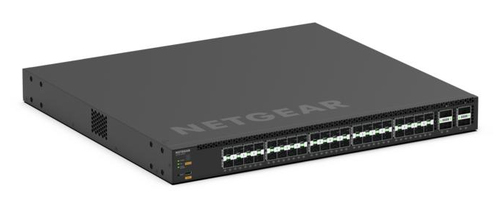

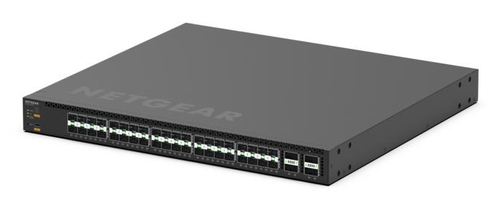

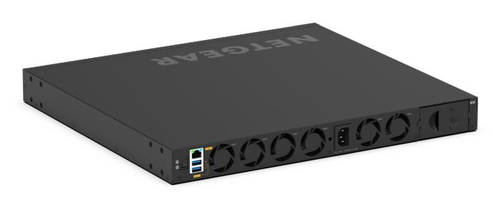

NETGEAR XSM4344FC, Managed, L3, Rack mounting, 1U
POWER AND THROUGHPUT Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.
Groundbreaking AV GUI A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration Auto-trunk and auto-LAG functionality auto connects with other M4350
FOCUS ON THE EVENT NOT FAN NOISE Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.
MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
Specifications
| Brand | NETGEAR |
|---|---|
| Manufacturer part no. | XSM4344FC-100NES |
| Our part no. | CO91942 |
| EAN | 0606449172942 |
| Category | Networking › Managed Switches |
| Weight | 12.6 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Ports & interfaces | |
| Installed SFP+ modules quantity | 40 |
| Fiber ports quantity | 44 |
| Fiber optic connector | QSFP28, SFP+ |
| Console port | USB |
| QSFP28 ports quantity | 4 |
| Network | |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 1600 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Performance | |
| Memory type | DDR4-SDRAM |
| Internal memory | 4000 MB |
| Noise level | 69.5 dB |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| Power consumption (max) | 213.6 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Heat dissipation | 728.21 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 400 mm |
| Height | 43.2 mm |
| Weight | 7.38 kg |
| Packaging content | |
| Cables included | AC, USB |
| Manual | Yes |
| Rack mount kit | Yes |
