Description

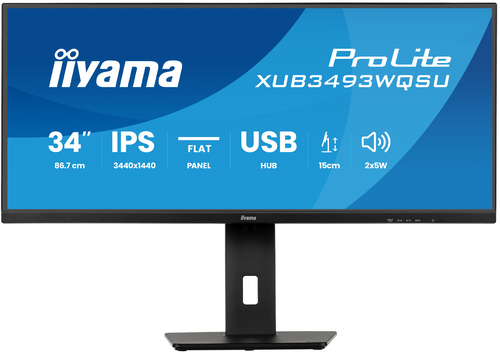

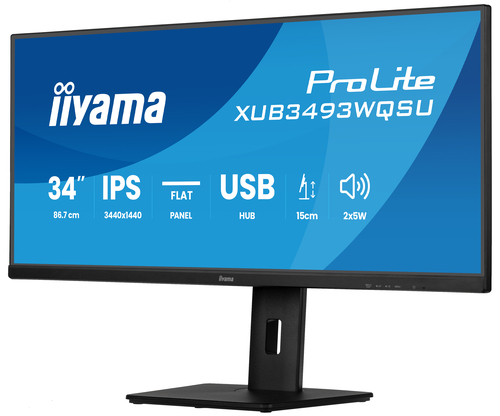

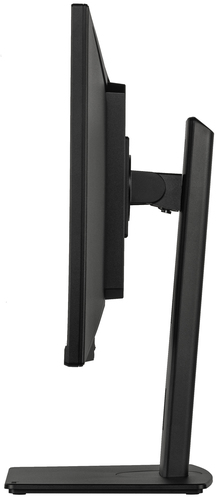

iiyama ProLite XUB3493WQSU-B6, 86.4 cm (34"), 3440 x 1440 pixels, UltraWide Quad HD, LED, 1 ms, Black
With a 21:9 UWQHD resolution, the ProLite XUB3493WQSU provides an extended desktop space ideal for working with multiple applications side by side. The IPS panel ensures accurate colour reproduction and wide viewing angles, suitable for both detailed work and media consumption. Equipped with Picture-in-Picture (PiP) and Picture-by-Picture (PbP) functionalities, the monitor allows you to display content from two different sources simultaneously. This is especially useful for professionals who need to monitor multiple systems or compare data across devices without the need for a second screen. The 150 mm height-adjustable stand helps you maintain an ergonomic posture, while flicker-free technology and a blue light reducer contribute to reduced eye fatigue. The XUB3493WQSU offers a practical and flexible solution for users who value efficiency, clarity, and comfort.
Specifications
| Brand | IIYAMA |
|---|---|
| Manufacturer part no. | XUB3493WQSU-B6 |
| Our part no. | CP15103 |
| EAN | 4948570125609 |
| Category | Monitors & Displays › Monitors |
| Weight | 11.7 kg |
| Display | |
| Display diagonal | 86.4 cm (34") |
| Display resolution | 3440 x 1440 pixels |
| HD type | UltraWide Quad HD |
| Native aspect ratio | 21:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen | No |
| Display brightness (typical) | 400 cd/m² |
| Response time | 1 ms |
| Response time (MPRT) | 1 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 80000000:1 |
| Maximum refresh rate | 120 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.233 x 0.233 mm |
| Horizontal scan range | 30 - 185 kHz |
| Viewable size, horizontal | 80 cm |
| Viewable size, vertical | 33.5 cm |
| Display diagonal (metric) | 86.7 cm |
| High Dynamic Range (HDR) supported | Yes |
| DDC/CI | Yes |
| Colour depth | 8 bit |
| Colour gamut standard | NTSC, sRGB |
| sRGB coverage (typical) | 100% |
| NTSC coverage (typical) | 74% |
| Performance | |
| AMD FreeSync | Yes |
| VESA Adaptive Sync support | Yes |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of downstream ports | 4 |
| Number of USB Type-C upstream ports quantity | 2 |
| USB Type-A downstream ports quantity | 2 |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort out version | 1.2 |
| HDCP | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | 23 - 5° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 31.2 kWh |
| Energy consumption (HDR) per 1000 hours | 40.3 kWh |
| Power consumption (typical) | 44 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Width (with stand) | 817 mm |
| Depth (with stand) | 245.5 mm |
| Height (with stand) | 572.5 mm |
| Weight (with stand) | 9.6 kg |
| Width (without stand) | 817 mm |
| Depth (without stand) | 245.5 mm |
| Height (without stand) | 428.5 mm |
| Packaging data | |
| Package width | 900 mm |
| Package depth | 456 mm |
| Package height | 188 mm |
| Package weight | 11.9 kg |
| Package type | Box |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| User controls | picture (video mode adjust, brightness, contrast, black tuner, sharpness, OD, ACR, Eco, X-res Technology ), colour adjust (colour temperature, user colour, i-Style colour, blue light reducer, gamma), PiP/PbP (PiP/PbP mode, sub win input, PiP size, PiP position, swap, audio input), input select (input source), audio (volume, mute), language, OSD (OSD H. position, OSD V. position, OSD background, OSD time out), setup menu (reset, USB charge, DDC/CI Control, HDMI range, HDR, Adaptive Sync, motion blur red., opening logo, power LED, information |
| Packaging content | quick start guide, safety guide |
| Weight | 9.6 kg |
| Width | 817 mm |
| Depth | 245.5 mm |
| Control panel | Power, Menu, Adjust/Volume/Mute, Adjust/Shortcut, Input/Exit |
| Compliance certificates | CE, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE |
| Technical details | |
| Native refresh rate | 60 Hz |
