Description
Vertiv PowerUPS 200 Essential Series PSA6E-1600IT-SCH, 1600VA/925W, Line-Interactive, 1600 kVA, 925 W, Pulse width modulation (PWM), 140 V, 290 V
The Vertiv PowerUPS 200 Essential Line Interactive Series PSA6E-1600IT-SCH is an affordable and reliable 230VAC uninterruptible power supply (UPS) battery backup system. With 5 Schuko outlets, this UPS offers flexible, basic power protection to multiple devices simultaneously, including computers, wireless networks, retail point-of-sale (POS) equipment, surveillance systems, and more. It has automatic voltage regulation (AVR) which helps to stabilize output power during fluctuations and extend battery life, as well as a two-year warranty for long-term peace of mind. The PowerUPS 200 Essential Series is now more intuitive and user-friendly than ever before with LED lights to easily indicate remaining runtime, user-replaceable batteries, and a dedicated mute button to silence alarms. It also includes Vertiv’s free management software, Vertiv Power Assist, which can be used to gracefully shut down connected equipment during an outage to protect it from damage and data loss.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | PSA6E-1600IT-SCH |
| Our part no. | CP31562 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1600 kVA |
| Output power | 925 W |
| Waveform | Pulse width modulation (PWM) |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 195 V |
| Output operation voltage (max) | 255 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 475 J |
| Efficiency | 100% |
| Noise level | 45 dB |
| Power protection features | Surge protection |
| Proper use | Small computer room |
| Ports & interfaces | |

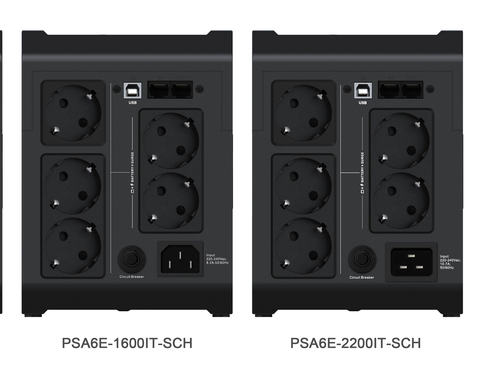

| AC outlet types | C20 coupler, Type E / F |
| AC outlets quantity | 5 AC outlet(s) |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 2 min |
| Typical backup time at half load | 10 min |
| Design | |
| Form factor | Desktop |
| Product colour | Black |

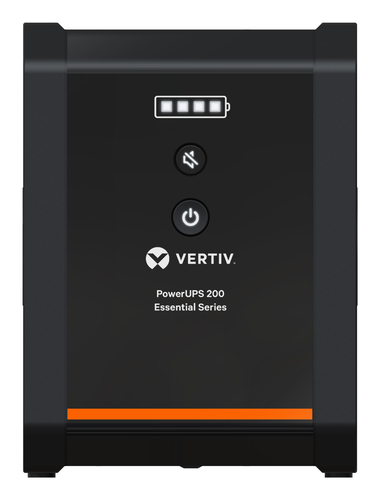

| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | REACH, RoHS, WEEE |
| Weight & dimensions | |
| Width | 145 mm |
| Depth | 400 mm |
| Height | 195 mm |
| Weight | 12.5 kg |
| Packaging data | |
| Package width | 236 mm |
| Package depth | 495 mm |
| Package height | 305 mm |
| Package weight | 14 kg |
| Other features | |
| Output voltage note | {'zh-CN': '', 'zh-TW': '', 'nl': '', 'en': '230 VAC', 'fr': '230VAC', 'fr-CA': '', 'de': '230VAC', 'id': '', 'it': '230VAC', 'ja': '', 'ko': '', 'ms-MY': '', 'pl': '230VAC', 'pt': '', 'pt-BR': '', 'ru': '', 'es': '230V CA', 'es-MX': '', 'sv': '', 'th': '', 'tr': '230VAC', 'vi': ''} |
| Weight (imperial) | 12.5 kg (27.6 lbs) |
